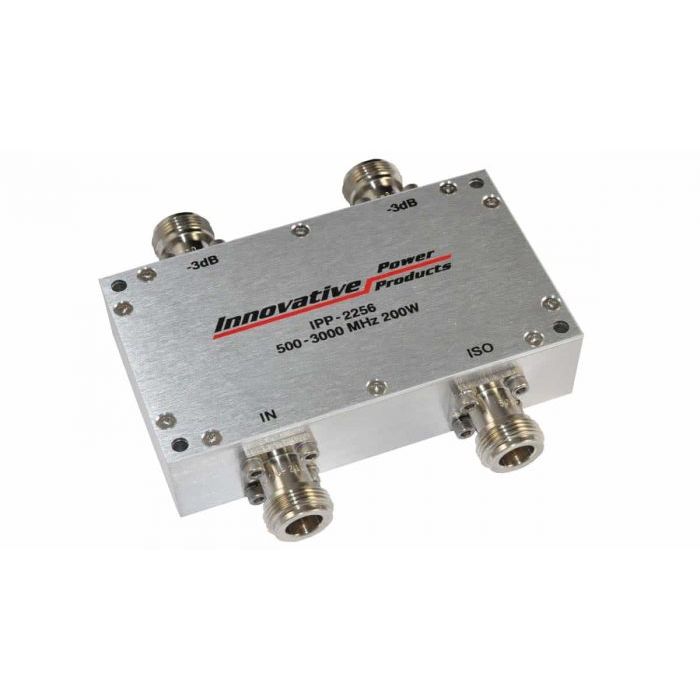

IPP-2256
IPP-2256
Innovative Power Products
Connectorised 90 Coupler with a frequency range of 500-3000MHz
Most IPP drop-in and surface mount style 90-degree hybrid couplers are offered with connectors. Depending upon the power these couplers are available with SMA, N, TNC, and 7/16 connectors. Other connector types are available upon request.
Applications for connectorised 90-degree hybrid couplers include power amplifiers, mixers, power combiners/dividers, antenna feeds, attenuators, switches, and phase shifters.
IPP's connectorised 90-degree coupler line offers low insertion loss, low VSWR and high power capability in a small package. These products are available in narrow and broadband bandwidths making them ideal for power amplifier applications.
You can request a sample by contacting a member of our RF and Microwave team on 0330 313 3220.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Phase Balance Degrees | 5.0000 |
| Insertion Loss Max dB | 0.7 |
| Power | 200 |
| Isolation | 17 |
| Amplitude Balance (dB) | 0.7 |
| Type | Connectorised 90 Degree Hybrid Coupler |
| Package Size | 3.90 x 2.23" |
| VSWR Max | 1.32:1 |
| Connector Type Female | N |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
