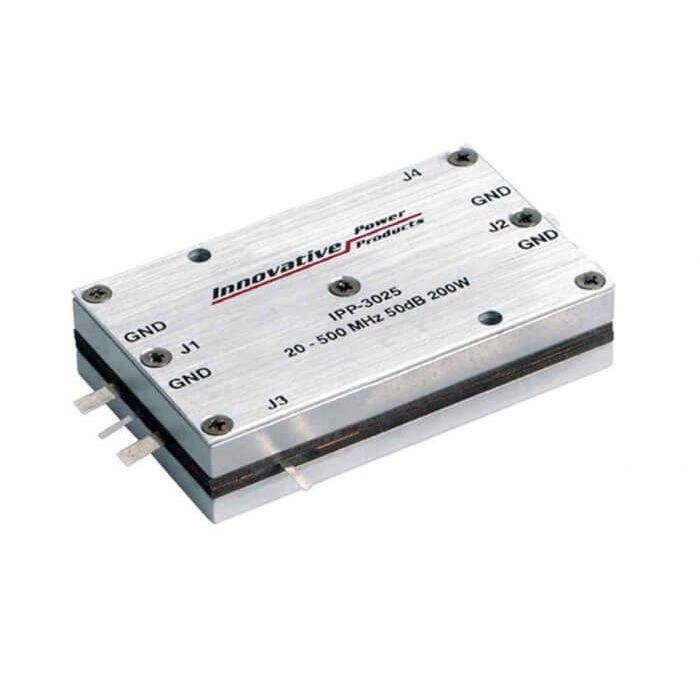

IPP-3025
IPP-3025
Innovative Power Products
Drop-In Directional Coupler - 20-500 MHz
IPP offers some of the widest bandwidths at the highest power Drop In Directional Couplers in the industry. IPP's unique designs allow them to achieve better coupling flatness, low VSWR and low main line loss in small sizes. These Drop-In Directional Couplers offer a low cost option for in-box monitoring compared to connectorised Directional Couplers.
IPP's Drop-In Directional Couplers operate from 20 MHz to 6,000 MHz. in power levels ranging from 100 to 1000 Watts.
You can request a sample of this product or find out more by speaking with a member of our RF and Microwave team on 0330 313 3220.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Directivity (dB) | 20 |
| Frequency Range | 20-500 MHz |
| Insertion Loss | 0.25 dB, Max |
| Power | 200 W |
| Type | Drop-In Directional Couplers |
| View Test Data | https://innovativepp.com/wp-content/drawings/ipp-3025_typical_test_data.pdf |
| Package Size | 1.50 x 2.50" |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
