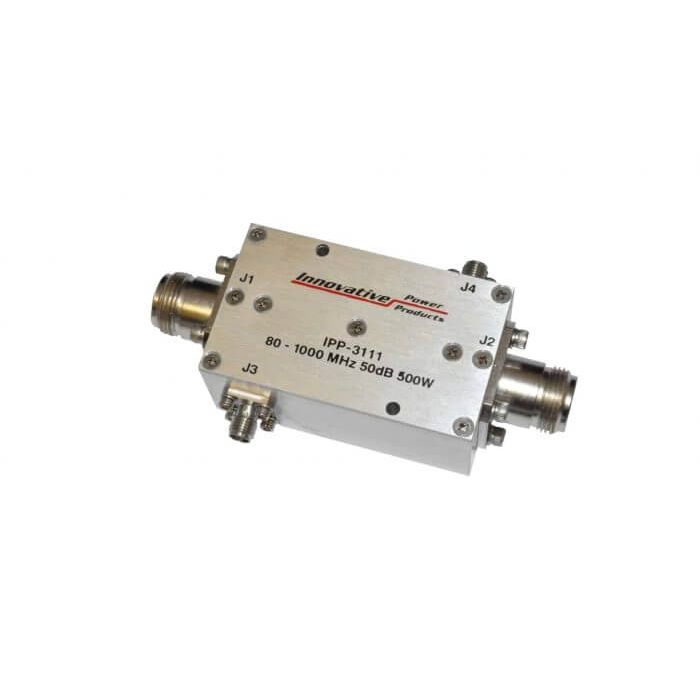

IPP-3111
IPP-3111
Innovative Power Products
Connectorised Directional Coupler with a Frequency Range between 80-1000MHz
IPP offers some of the widest bandwidths at the highest power in the industry, with unique designs that allow better coupling flatness, low VSWR and low main line loss in small sizes. Depending upon the power, these connectorised directional couplers are available with SMA, N, TC or 7/16 connectors. Other connectors are available upon request. Connectorised directional couplers are designed to be screw-down mounted to a heat sink.
You can request a sample of this product by speaking with a member of our RF and Microwave team on 0330 313 3220.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Insertion Loss (dB) | 0.25 |
| Directivity (dB) | 20 |
| Frequency Range | 80-1000 |
| Power | 500 |
| Type | Connectorised Directional Coupler |
| View Test Data | https://innovativepp.com/wp-content/drawings/ipp-3111_typical_test_data.pdf |
| Package Size | 1.50 x 2.50" |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
