IPP-7063

IPP-7063

Innovative Power Products

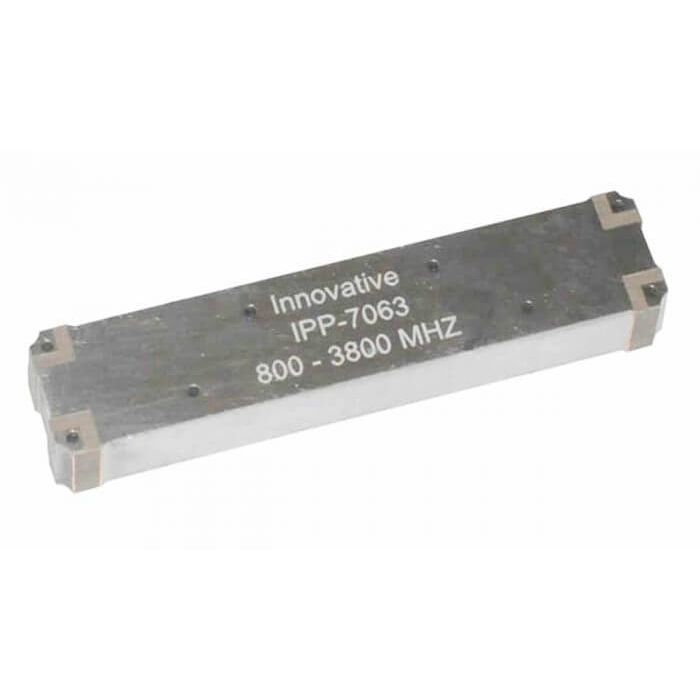

Surface Mount 90-Degree Hybrid Coupler, 800-3800 MHz

IPP's surface mount 90-degree hybrid couplers are laminated multi-layer structures designed for mounting on top of the PC board. This technology utilises plated through via holes underneath the coupler to transfer the heat and establish ground when soldered to the PC Board. The RF connections are on the four corners and they are connected by soldering them to the RF traces on the PC Board. RoHS Compliant devices and tape and reel are available.

These surface mount 90-degree hybrid couplers offer low insertion loss, low VSWR and high power capabilities in a small package. These products are available in narrow and broadband bandwidths making them ideal for power amplifiers, power combiners/dividers, modulators antenna feeds, attenuators, switches, and phase shifter applications. The frequency range is from 30 MHz to 12,000 MHz in power levels up to 300 Watts.

Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Phase Balance Degrees 5.0000
Frequency 800-3800 MHz
Amplitude Balance (dB) 0.65
Type
View Test Data https://innovativepp.com/wp-content/drawings/ipp-7063_typical_test_data.pdf
Package Size 0.40" x 1.80"
VSWR Max 1.30:1
More Information
Attribute Value
Data Sheet Click here to view
