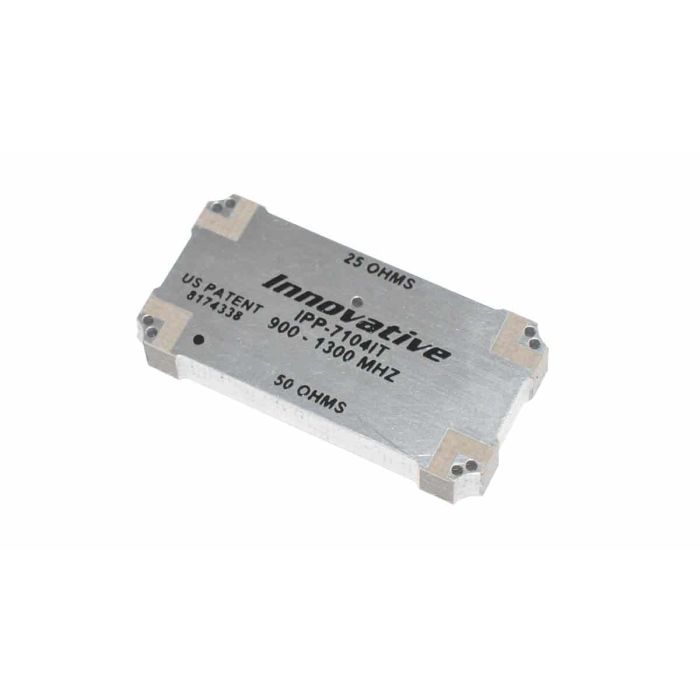

IPP-7104IT
IPP-7104IT
Innovative Power Products
Impedance Transforming 90 Degree Hybrid Coupler, 900-1300 MHz
Unlike the typical quadrature hybrid which has the same impedance at all four ports, IPP's patented design provides input and isolation ports at 50 Ohms and the -3dB ports at an impedance other than 50 Ohms, for example, 25 Ohms.
The impedance transformation takes place inside the coupler, allowing it to be used in mixed impedance systems. This impedance-transforming coupler is ideal for the splitting and combining of Mimics which may have input or output impedances other than 50 Ohms.
IPP's impedance transforming 90-degree hybrid couplers offer low insertion loss, low VSWR and high power capability in a small package. These products are available in narrow and broadband bandwidths making them ideal for power amplifiers, power combiners/dividers, modulators, antenna feeds, attenuators, phase shifters and switches. The frequency range is from 225 MHz to 3500 MHz in power levels up to 250 Watts.
IPP's innovative impedance-transforming coupler design was awarded a patent in 2012.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Phase Balance Degrees | 5.0000 |
| Power | 200 W |
| Amplitude | 0.5 dB |
| Isolation | 16 dB |
| Frequency | 900-1300 MHz |
| Package | SMD |
| Insertion Loss (dB) | 0.45 dB |
| Type | |
| Package Size | 0.50" x 1.00" |
| VSWR Max | 1.25:1 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
