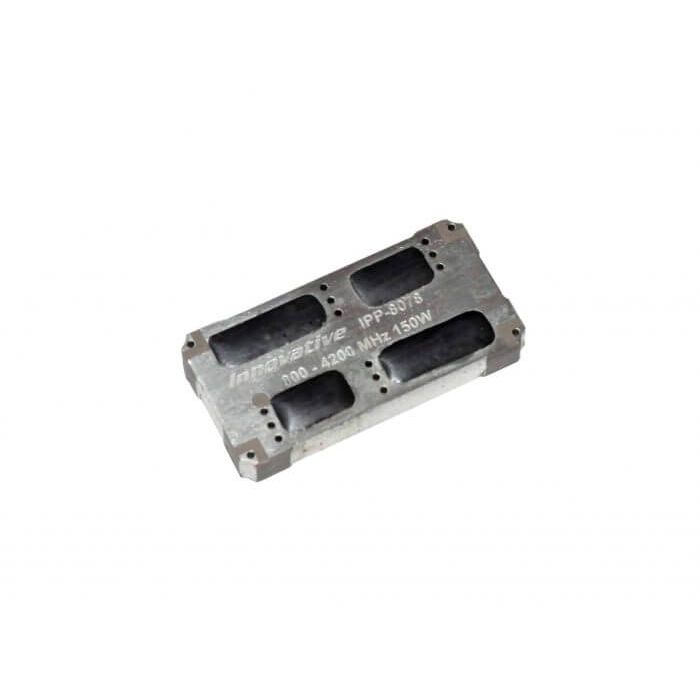

IPP-8078
IPP-8078
Innovative Power Products
Surface Mount Directional Coupler, 800-4200 MHz
IPP's surface mount directional couplers are designed for mounting on top of the PC board utilising plated through via holes underneath the coupler to transfer the heat and establish ground when soldered to the PC Board. The RF connections are typically on the four corners and are connected by soldering them to the RF traces on the PC Board.
This unique directional coupler line offers low insertion loss, high directivity, low VSWR and high power capability in a small package. These products are available in narrow and very broad bandwidths making them ideal for power amplifiers, antenna feeds, or anywhere a small sample of the RF signal is required.
RoHS-compliant devices are available - please ask our team for details.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Directivity (dB) | 18 |
| Power | 150 W |
| Frequency | 800-4200 MHz |
| Type | |
| View Test Data | https://innovativepp.com/wp-content/drawings/ipp-8078_typical_test_data.pdf |
| Download S-Parameters | https://innovativepp.com/wp-content/drawings/ipp-8078_s-parameters_sim.s4p |
| Package Size | 1.00" x .50" |
| Nominal Coupling | 32.0 ± 1.5 |
| VSWR Main Line | 1.30 : 1 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
