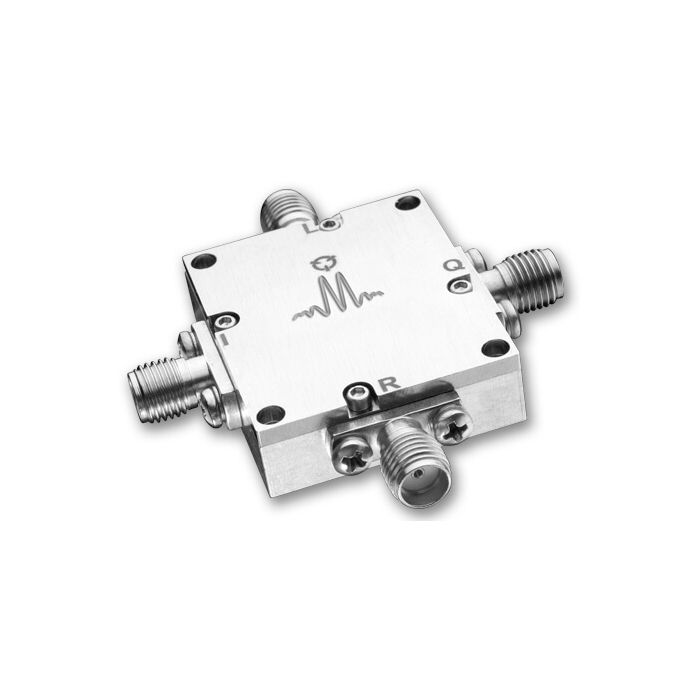

IQ-0618
IQ-0618
Marki Microwave
Quadrature-IF Double-Balanced Mixer
An IQ mixer is a special mixer that has quadrature IF outputs. It is different from an IR/SSB mixer because it put data in both sidebands around the LO, but with different phase such that the two data signals can be retrieved independent of each other. The I and Q inputs to the mixer will show up 90° out of phase with each other on the RF side, and can then be retrieved using another IQ mixers.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Key Features |
|
| IF (GHz) | DC to 0.5 |
| LO Drive (dBm) | +10 to +16 |
| Conversion Loss (dB) | 7.5 |
| Isolations L-R (dB) | 35 |
| Isolations L-I (dB) | 20 |
| RF/LO (GHz) Low | 6 |
| RF/LO (GHz) High | 18 |
| Image Rejection (dB) | 23 |
| Product Type | Legacy IQ/IR/SSB |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
