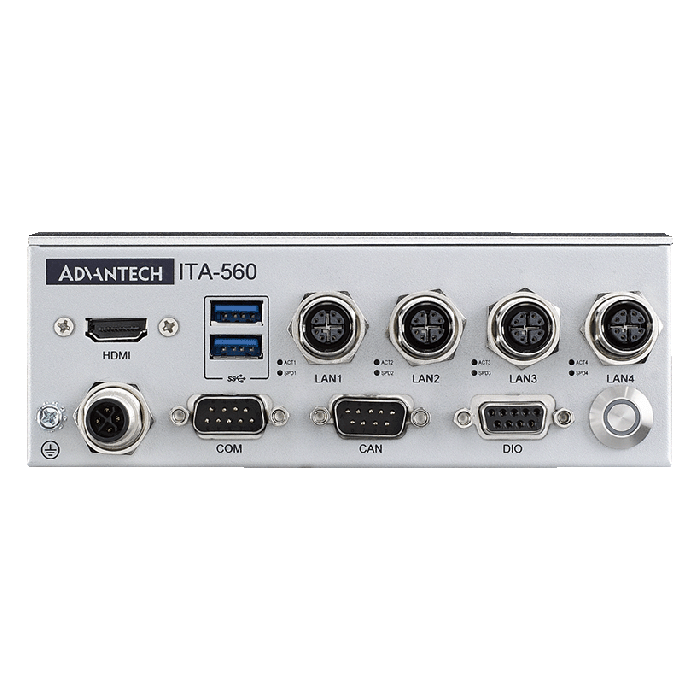

ITA-560Nano
ITA-560Nano
Advantech
AI Inference Box Computer Powered by NVIDIA® Jetson Orin™ Nano for Railway Applications
AI Inference Box Computer Powered by NVIDIA® Jetson Orin™ Nano for Railway Applications.
Key Features:
- Fanless box computer designed for AI inference
- Embedded NVIDIA® Jetson Orin™ NX/ Orin™ Nano platform
- Compliant with EN 50155 OT1 and EN 50121-3-2 EMC standards
- Rugged M12 connectors suitable for harsh, industrial environments
- 1 x Mini PCIe, 1 x M.2 (E-key),1 x M.2 (M-key) and 1 x M.2 (B-key) for easy expansion
- Bundled with Linux Ubuntu 20.04 operating system
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| CPU |
NVIDIA® Jetson Orin™ Nano |
| GPU |
NVIDIA® Ampere GPU |
| NVIDIA® CPU/GPU | NVIDIA® Jetson Orin™ Nano |
| Memory | 8GB 128-bit LPDDR5 |
| Controller | Intel® I210-IT |
| Interface | 10/100/1000 Mbps |
| CAN | 1 x CAN, DB9 |
| USB | 2 x USB 3.0 type A |
| Serial Ports | 1 x RS-232/RS-422/RS-485, DB9 |
| OTG USB | 1 x Micro USB |
| Mini PCIe | 1 x Mini PCIe slot |
| SIM | 1 x Nano SIM card slot |
| Expansion M.2 |
1 x M.2 (B-key) 3052 for 5G/LTE |
| Display | 1 x HDMI |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
