L1-500 500A
L1-500
Narda Safety Test Solutions
Single Line 9 kHz – 30 MHz

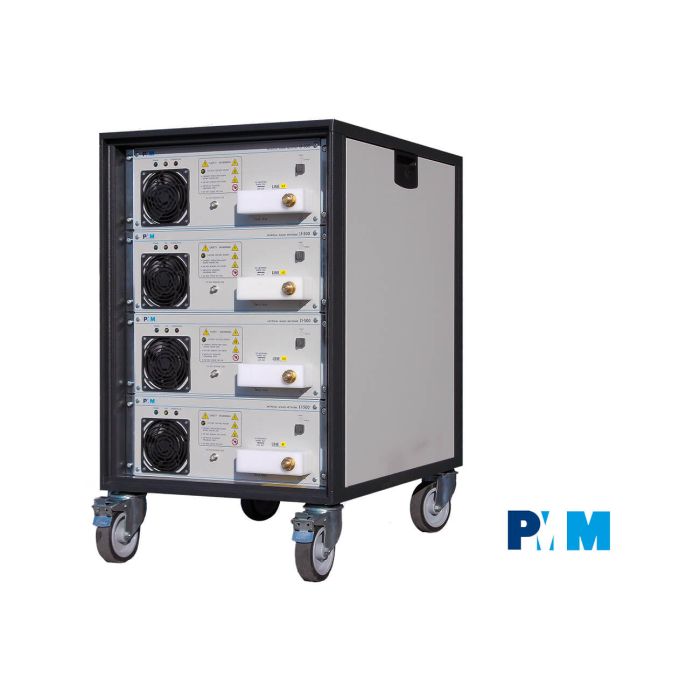

Tailored for single-phase operations, the L1-500 stands out as a robust Line Impedance Stabilisation Network (LISN), capable of managing a remarkable 500 amperes. This robust capacity renders it ideal for evaluating equipment with substantial current requirements.
Technical Insights and Operational Features
Affordable and Flexible Testing Solutions
Engineered with a focus on cost-effectiveness and versatility L1-500 offers budget-conscious testing alternatives without compromising on performance. Their adaptability extends to a wide array of EMI receivers and spectrum Analysers, affording users the flexibility to tailor their testing setups to suit specific requirements.
The L1-500 is fully compliant to:
- CISPR 16-1-2
- VDE 0876
- FCC part 15
- MIL-STD 461F
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Frequency Range | 9 kHz to 30 MHz |
| Maximum Operating Voltage |
(L/PE) (N/PE): 400 Vac 565 Vdc |
| Maximum Rated Output Current |
500 A (20 min., starting the test at max 25°C LISN internal temperature) |
| Rated Temperature | -10 °C to +40 °C |
| Main Supply Frequency Range | DC to 60 Hz |
| Dimensions | 510 x 175 x 830 mm |
| Weight | 55 kg |
| RF Output | One BNC female per line |
| Equivalent Circuit | 50 Ω // [5 Ω + 50 μH] with 250 μH Choke or Bypass |
| EUT Connection |
EUT, main power and ground connections: M14 Bolts |
| Storage Temperature | -25°C to 70°C |
