L2020

This product is available in 5-7 weeks

Key Features

• Type: Angled test lead with pogo pins, total length 1940 mm
• Maximum rated voltage: 60 VDC
• Split-to-probe length: Approx. 100 mm (red), 550 mm at maximum (black)
• Plug-to-split length: Approx. 1660 mm
• Contact Pressure (approx.): Initial 190 g, total 250 g, stroke 1 mm
• Pin tips: pogo pins (one on each tip), diameter 2.9 mm, length 13.5 mm
• For use with: BT3554-50, BT3554-51, BT3554-52, BT3554-91, BT3554-92, RM3548, RM3548-50
• Also compatible with: BT3554, BT3554-01, BT3554-10, BT3554-11, 3554

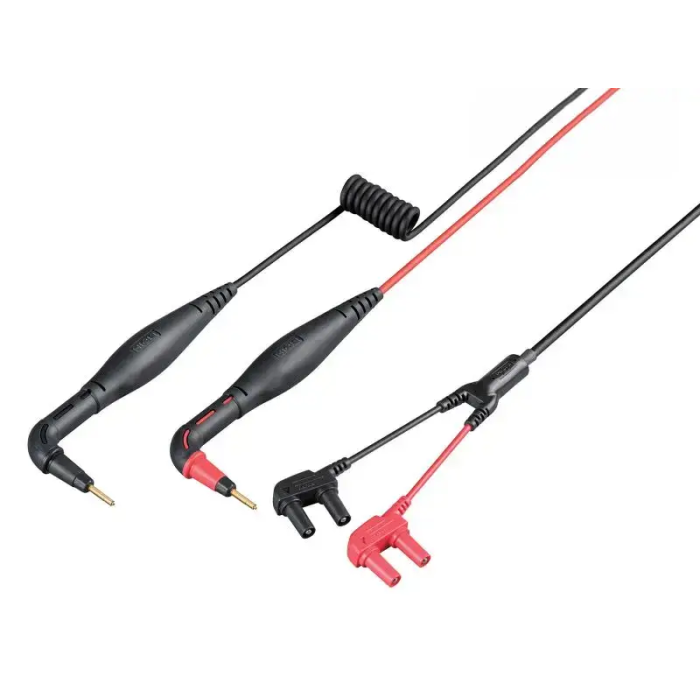

The L2020 test lead with angled pogo-pin tips is designed for use with the portable BT3554 battery testers and RM3548 resistance meters. Rated for a maximum voltage of 60 VDC, it has a total length of approximately 1940 mm, providing ample flexibility to connect the instrument to the test object, even in hard-to-reach areas.

The gold-plated pogo-pin tips, with a coaxial structure featuring a SENSE terminal at the centre and a SOURCE terminal on the outer edge, have a diameter of just 2.9 mm. This design makes them ideal for measurements on battery contacts with very limited accessible surface and allows measurements through an inspection hole made in a battery connector cover without requiring the removal of the cover.

The probe tips of the cable are replaceable (replacement tip 9465-90), ensuring a long service life.
