L4933

Hioki

Contact Pin Set

Skip to the end of the images gallery

Skip to the beginning of the images gallery

This product is available in 5-7 weeks

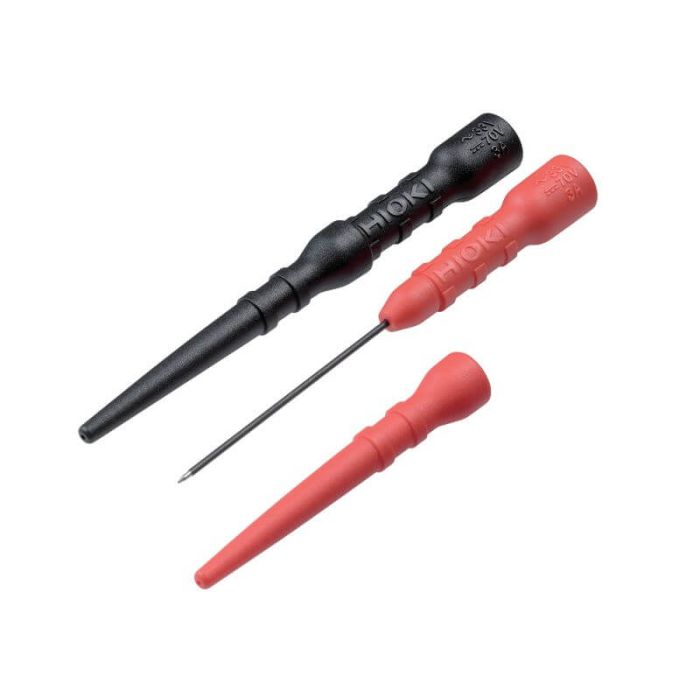

Contact Pin Set

Key Features

Max Voltage: 60V DC, 30V AC
Max Current: 3A
Length over all: 95mm
Tip length: 48mm
Tip diameter (isolated section): 1.3mm
Tip diameter (contact part): 1.0mm
Tip blank part: 3mm
Tip surface: gilded
Compatible Multimeters: 3030-10, DM7275, DM7276, DT4223, DT4224, cm4141, cm4371, cm4373, cm4375, DT4223, DT4224, DT4261, DT4281, DT4282
Compatible Clamp Meters: 3280-10F, 3280-70F, cm3281, cm3289, cm3291, cm4141, cm4371, cm4373, cm4375

The L4933 Test Probe Set is fully insulated except for the front part of the tip. It can be fitted to Hioki's L9207-30, L9208, L9170-10 and DT4911 test leads and is an optional accessory for many Hioki multimeters and current clamps.
