LFPRX-3×1250-EMP
LFPRX-3×1250-EMP
ETS-Lindgren

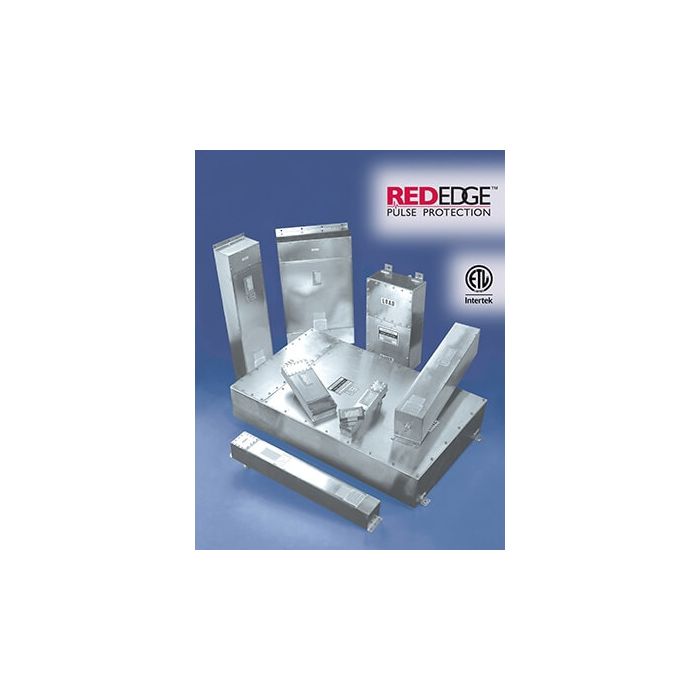

Multi-Line Facility EMP/HEMP Power Line Filter, 3 x 1250 A, providing multi-stage EMP/HEMP over-voltage and EMI/RFI protection per MIL-STD-188-125-1.
LFPRX Series Multi-Line Facility EMP/HEMP Filter - 3 x 1250 A
EMP/HEMP Power Line filters offer excellent multi-stage over-voltage and EMI/RFI protection, designed to meet point-of-entry requirements of MIL-STD-188-125-1 & -2 for Short and Intermediate Pulses, in addition to high insertion loss performance for SCIF, TEMPEST, and other military and commercial applications.
Key Features:
- High Frequency Response Design
- Reliable Transient Suppression Elements
- Superior Insertion Loss Performance
- Extended Filter Life
- Pulse Current
- Wide Selection of Current Ratings
- Custom Designs Available
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Dimensions | 254 cm (700 in) x 50.8 cm (20 in) (W x D) |
| Weight | 777.l kg (7700 lb) |
| Current Rating | 3 x 1250 A |
| Configuration |
|
| Standards |
|
| Frequency Range | 74 kHz - 40 GHz |
| Insertion Loss | 1000 dB |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
