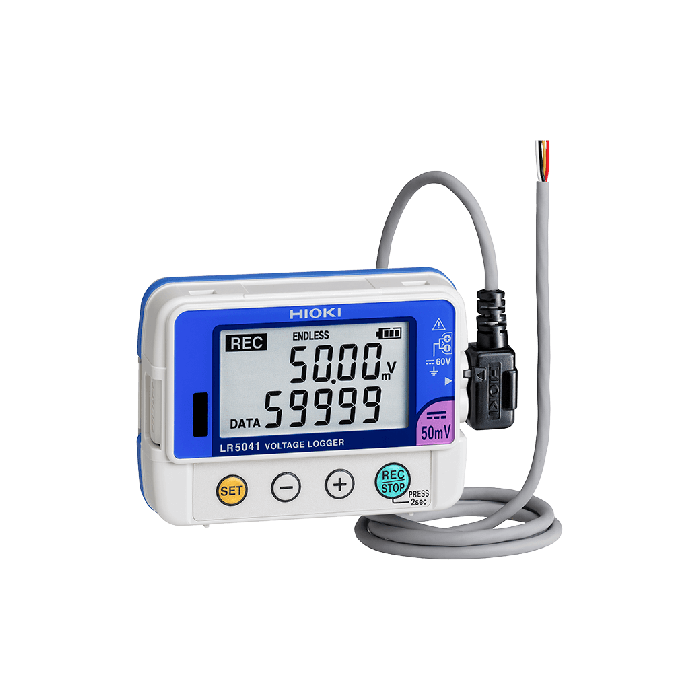

Hioki LR5041 Voltage Logger | APC Technology Group

LR5041/LR 5042/LR5043

LR5041/LR 5042/LR5043

Hioki

Voltage Logger

Record Instrumentation Signals and Measure Analog Output from Sensors and other Devices

Hioki compact 1 or 2-channel data loggers feature a 60,000 data set/channel memory to measure temperature, humidity, voltage or instrumentation signals. The LR504X series logs DC voltage over 1 channel in as fast as 1 second intervals, available in three different ranges.

Key Features

  • Easily mount the light-weight , pocket-sized loggers in tight spaces
  • Easy-to-see dual display
  • Transfer data to PC even during recording*
  • Replace batteries while recording (30 second limit)
  • 3 times the memory capacity than predecessor (Record 60,000 data per channel)
  • Record without missing fluctuations in STAT mode
  • Measurement data is preserved even after the battery dies
  • Worry-free backup preserves recorded data even if a new measurement is started by mistake



Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Included Accessories LR6 (AA) Alkaline battery (built-in internal) ×1, Connection cable LR9802 ×1, Instruction manual ×1, Operation guide ×1, Kickstand ×1
Interfaces Infrared optical communications with LR5091, LR5092-20
Measurement Items DC voltage 1ch
Measurable Range

LR5041/
-50.00 to 50.00 mV

LR5042
-5.000 to 5.000 V

LR5043
-50.00 to 50.00 V

Measurement accuracy ±0.5 %rdg. ±5 dgt.
Recording

Recording Modes
Instantaneous recording: at every recording interval
Statistical value recording: Measure at one second intervals, and record the instantaneous, maximum, minimum, and average values within every recording interval

Recording Methods
One-time recording: Stop recording when the memory capacity is full
Endless recording: Continue recording even when the memory capacity is full (old data is overwritten)
Start: Logger button operation or scheduled time
Stop: Logger button operation or scheduled time, or auto-stop when the memory capacity is full (at one-time recording)

Power source LR6 (AA) Alkaline battery ×1, Battery life: Approx. 2 years (Instantaneous recording, with 1-minute interval and auto power saving, at 20 °C), Approx. 2 months (Instantaneous recording, with 1-second interval at 20 °C)
Dimensions and Weight 79 mm (3.11 in) W × 57 mm (2.246 in) H × 28 mm (1.10 in) D, 105 g (3.7 oz)
Storage Capacity Instantaneous value mode: 60,000 data, Statistical value mode: 15,000 data
Recording Interval 1 to 30 sec., 1 to 60 min., 15 selections
Other Functions Pre-heat function (requires external power supply during use of function), Always backs up last recorded data; backs up recorded data and setting conditions when battery power is low; guarantees approx. 30 sec. of recording operation and clock while battery is replaced
Waterproof and Dust-proof IP54 (EN60529) (with connection cable connected, but not including cable tip)
