Hioki LR5041 Voltage Logger - ±5V DC| APC Technology Group

LR5042

LR5042

Hioki

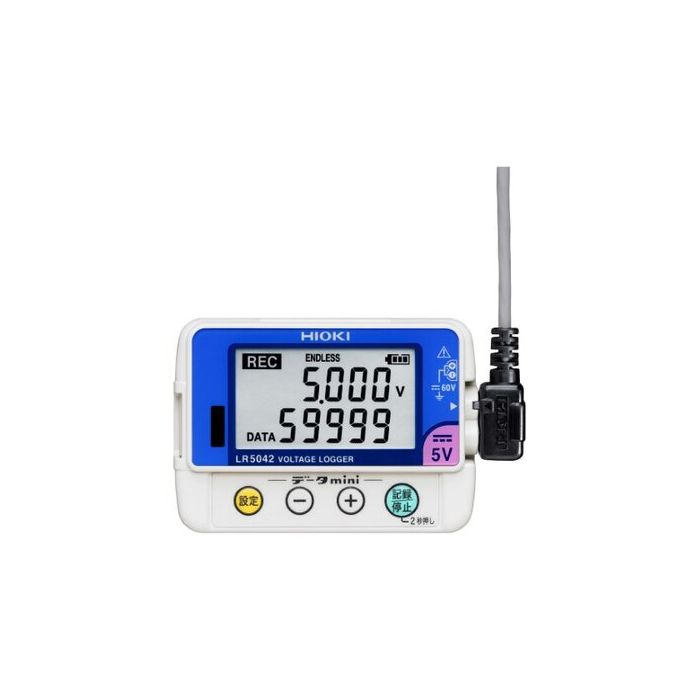

Voltage Logger - ±5V DC

This product is available in 5-7 weeks

Record Instrumentation Signals and Measure Analog Output from Sensors and other Devices

Hioki compact 1 or 2-channel data loggers feature a 60,000 data set/channel memory to measure temperature, humidity, voltage or instrumentation signals. The LR504X series logs DC voltage over 1 channel in as fast as 1 second intervals, available in three different ranges.

Key Features

  • Easily mount the light-weight , pocket-sized loggers in tight spaces
  • Easy-to-see dual display
  • Transfer data to PC even during recording*
  • Replace batteries while recording (30 second limit)
  • 3 times the memory capacity than predecessor (Record 60,000 data per channel)
  • Record without missing fluctuations in STAT mode
  • Measurement data is preserved even after the battery dies
  • Worry-free backup preserves recorded data even if a new measurement is started by mistake



In stock
£185.05
More Information
Attribute Value
Included Accessories LR6 (AA) Alkaline battery (built-in internal) ×1, Connection cable LR9802 ×1, Instruction manual ×1, Operation guide ×1, Kickstand ×2
Interfaces Infrared optical communications with LR5091, LR5092-20
Measurement Items DC voltage 1ch
Measurable Range -5.000 to 5.000 V
Measurement accuracy ±0.5 %rdg. ±5 dgt.
Recording

Recording Modes
Instantaneous recording: at every recording interval
Statistical value recording: Measure at one second intervals, and record the instantaneous, maximum, minimum, and average values within every recording interval

Recording Methods
One-time recording: Stop recording when the memory capacity is full
Endless recording: Continue recording even when the memory capacity is full (old data is overwritten)
Start: Logger button operation or scheduled time
Stop: Logger button operation or scheduled time, or auto-stop when the memory capacity is full (at one-time recording)

Power source LR6 (AA) Alkaline battery ×1, Battery life: Approx. 2 years (Instantaneous recording, with 1-minute interval and auto power saving, at 20 °C), Approx. 2 months (Instantaneous recording, with 1-second interval at 20 °C)
Dimensions and Weight 79 mm (3.11 in) W × 57 mm (2.246 in) H × 28 mm (1.10 in) D, 105 g (3.7 oz)
Storage Capacity Instantaneous value mode: 60,000 data, Statistical value mode: 15,000 data
Recording Interval 1 to 30 sec., 1 to 60 min., 15 selections
Other Functions Pre-heat function (requires external power supply during use of function), Always backs up last recorded data; backs up recorded data and setting conditions when battery power is low; guarantees approx. 30 sec. of recording operation and clock while battery is replaced
Waterproof and Dust-proof IP54 (EN60529) (with connection cable connected, but not including cable tip)
More Information
Attribute Value
Data Sheet Click here to view
