LR5091

Hioki

Communication Adapter

Skip to the end of the images gallery

Skip to the beginning of the images gallery

This product is available in 5-7 weeks

Easily Transfer Logging Data from a LR5000 Series Data Logger to a PC

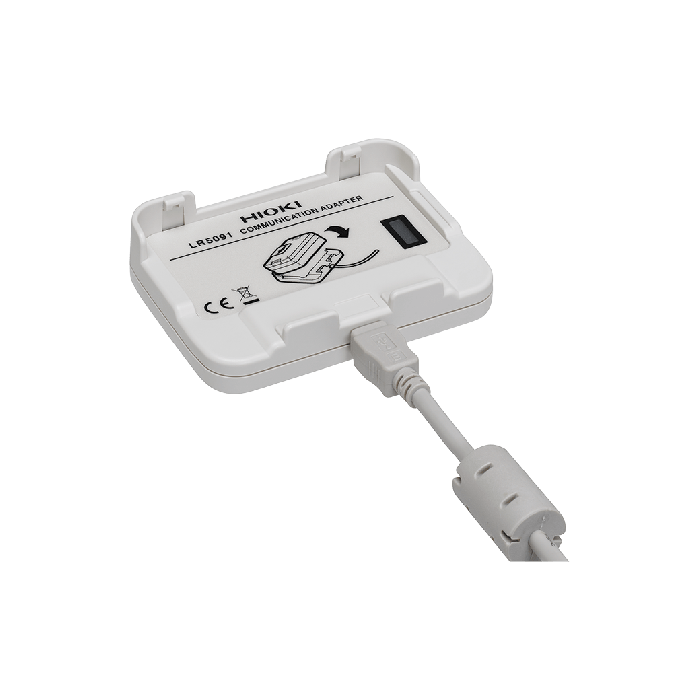

The Hioki LR5091 is a communication adapter for transferring data from the LR5000 Series Data Loggers. Simply dock the data logger onto the Communication Adapter to transfer data using infrared, then upload the data to a PC via USB using the bundled PC application.

Key Features

Transfer the recorded data from the LR5000 Series Data Logger to a PC
Transfer data logger configurations or clock settings from a PC to the data logger
Use the included software to easily graph and print data, and calculate maximum, minimum, and average values and more between cursors

Specifications

More Information
Attribute	Value
Included Accessories	USB cable (1 m) ×1, CD (Application software "LR5000 Utility") ×1
Functionality	Transfer data from a data logger to a PC Send settings and the time from a PC to a data logger.
Functions	Settings: Communicates via infrared light with LR5000 series loggers to send and receive settings. Graph function: Displays graphs of up to 16 channels, displays statistical data, etc. Print function: Print graphs, Print statistical data. Export function: Data CSV output, paste into Excel. Import function: Loads text files from the Clamp On Power HiTester 3169-20/-21 [only demand parameter with a recording interval of at least 1 sec.] Processing of data: Scaling, Power calculation, Energy cost calculation, Operating ratio calculation, Integration, Dew point temperature, Calculate between channels.
Communication Method	Between data loggers: Infrared communication With PC: USB 2.0
Power source	USB bus power
Dimensions and Weight	83 mm (3.27 in) W × 61 mm (2.40 in) H × 19 mm (0.75 in) D, 43 g (1.5 oz)
