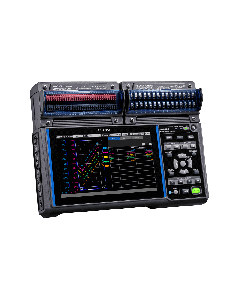

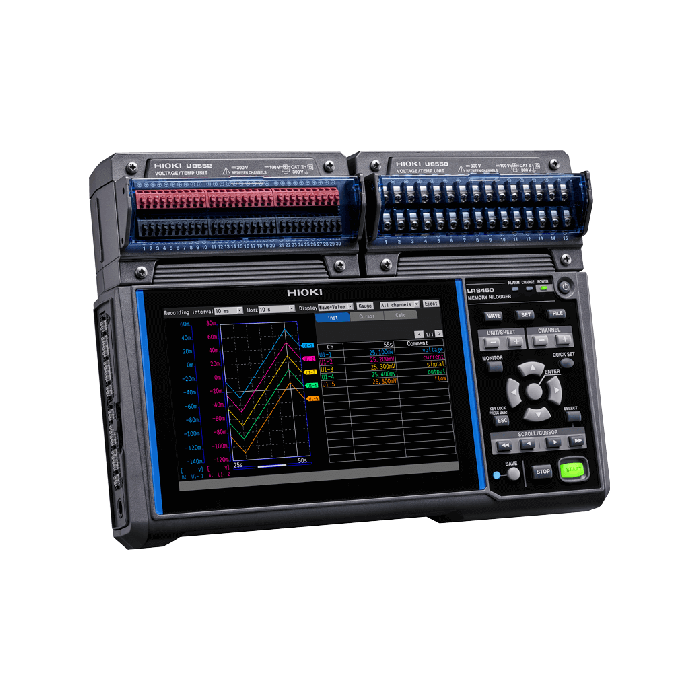

Hioki LR8450-01 Wireless Memory HiLogger | APC Technology Group

LR8450-01

LR8450-01

Hioki

Memory HiLogger (Wireless LAN Model)

This product is available in 5-7 weeks

1ms Sampling Portable Logger Expandable to 330 Channels with Your Choice of Plug-in or Wireless Input Modules

Hioki Memory HiLoggers are high-speed data loggers for recording multiple channels of voltage, temperature, resistance or humidity signals, some models providing complete isolation between channels and strong noise resistance.

The LR8450-01 offers a sampling speed of up to 1 ms and up to 330 channels, depending on the types of plug-in or wireless modules that are selected. Collect data from wireless modules installed in remote or confined locations via a LAN connection. New input modules measure strain and distortion, ideal for automotive applications involving the evaluation of vehicle components as well as robotic equipment.

Key Features

  • Wireless LAN model expandable to 330 ch with wireless and plug-in modules
  • Record voltage output from pressure and other sensors with 1ms sampling speed
  • Directly connect strain gauge and measure signals in as fast as 1 ms intervals
  • Significantly reduced effects from noise let you safely measure in high voltage and high frequency areas such as around inverter motors
  • Avoid wiring issues by minimizing cable length using wireless modules
  • Monitor data captured remotely on PC with wireless LAN technology
Contact our expert team

We work closely with our technology partners to offer customers the best
lead time and prices we can achieve.



Contact our team for the latest availability and pricing information on
0330 313 3220, or use the request a quote button below and a member
of our team will be in touch.

Price £2,016.90
More Information
Attribute Value
Power Supply [AC adapter] Using the Z1014 (100 to 240 V AC, 50/60 Hz), 95 VA Max. (including AC adapter), 28 VA Max. (exclusive of AC adapter) [Battery Pack] Using the Z1007 (accommodates 2 batteries), continuous use 4 hr (reference value for 2 pieces), 20 VA Max. [External power] 10 to 30 V DC, 28 VA Max.
Included Accessories Quick Start Manual ×1, LOGGER Application Disc (Quick Start Manual, Instruction Manual, Logger Utility, Logger Utility Instruction Manual, CAN editor, CAN editor instruction manual, Communication Instruction Manual) ×1, USB Cable ×1, AC Adapter Z1014 ×1, Precautions Concerning Use of Equipment that Emits Radio Waves ×1
Display 7 inch TFT color liquid crystal display (WVGA 800 × 480 pixel)
Functions Save waveform data in real time to the SD memory card or USB drive, numerical value calculations, waveform calculations, 8ch alarm output, voltage output ×2 (5 V /12 V /24 V selectable)
Recording 1 ms*, 2 ms*, 5 ms* (*: Can be set only when using 1 ms/S modules), 10 ms to 1 hour, 22 selections (Data refresh interval can be set for each module)
Dimensions and Weight

Without any modules:
272 mm (10.71 in) W × 145 mm (5.71 in) H × 43 mm (1.69 in) D (excluding protrusions), 1108 g (39.1 oz) (excluding battery pack)

With 2 modules:
272 mm (10.71 in) W × 198 mm (7.80 in) H × 63 mm (2.48 in) D (excluding protrusions)

With 4 modules:
272 mm (10.71 in) W × 252 mm (9.92 in) H × 63 mm (2.48 in) D (excluding protrusions)

Maximum Number Of Module Connections 4 plug-in modules + 7 wireless modules
No. Of Measurement Channels

Up to 120 ch with plug-in modules, up to 330 ch with plug-in modules and wireless modules
(U8555 and LR8535 can input up to 500 channels per module)

Pulse/Logic Input

[Number of ch] 8 ch (common GND, non-isolated, exclusive setting for pulse/logic input for individual channels)

[Adaptive input format] Non-voltage contact, open collector, or voltage input

[Count] 0 to 1000 M pulse, 1 pulse resolution

[Rotational speed] 0 to 5000/n (r/s), 1/n (r/s) resolution, 0 to 300,000/n (r/min.), 1/n (r/min.) resolution, n: Number of pulses per rotation (1 to 1000)

[Logic input] Records 1 or 0 for each recording interval

External Media

SD Memory Card/USB Drive (user-selectable)
(Only storage media sold by HIOKI are guaranteed for operation)

LAN Interface

100BASE-TX / 1000BASE-T, DHCP, DNS support


Functions: Data acquisition, condition settings used with the Logger Utility software, configuring settings and controlling recording using communications commands, FTP server / FTP client, HTTP server, Email transmission, NTP client

USB Interface

Series A receptacle × 2: USB 2.0 compliant (USB drive, keyboard, or hub)


Series mini-B receptacle × 1: Data acquisition, condition settings used with the Logger Utility, configuring settings and controlling recording using communications commands, transferring data from a connected SD Memory Card to a computer

SD Card Slot SD standard-compliant slot × 1 (with SD memory card/SDHC memory card support), Guaranteed-operation options: Z4001, Z4003
Wireless LAN Interface

IEEE 802.11b/g/n
Communications range: 30 m, line of sight
Encryption function: WPA-PSK/WPA2-PSK, TKIP/AES
Usable channels: 1 to 11
Supported modes: Wireless module connectivity, access point, station
Functions: Configuring settings and controlling recording using communications commands, FTP server/client, HTTP server, Email transmission, NTP client

More Information
Attribute Value
Data Sheet Click here to view
