LR8533

LR8533

Hioki

5-Channel Wireless Logger Module for Voltage, 1 ms

This product is available in 5-7 weeks

5-Channel Wireless Logger Module for Voltage, 1 ms

Key Features

  • Autonomous operation with wireless data transfer and battery option
  • Wireless data transmission to LR8450-01 Data Logger
  • 5 input channels for DC voltage
  • 1 ms update interval
  • A/D resolution: 16 bits
  • Voltage: 7 ranges, from ±100 mV to ±100 V and for 4-20 mA signals

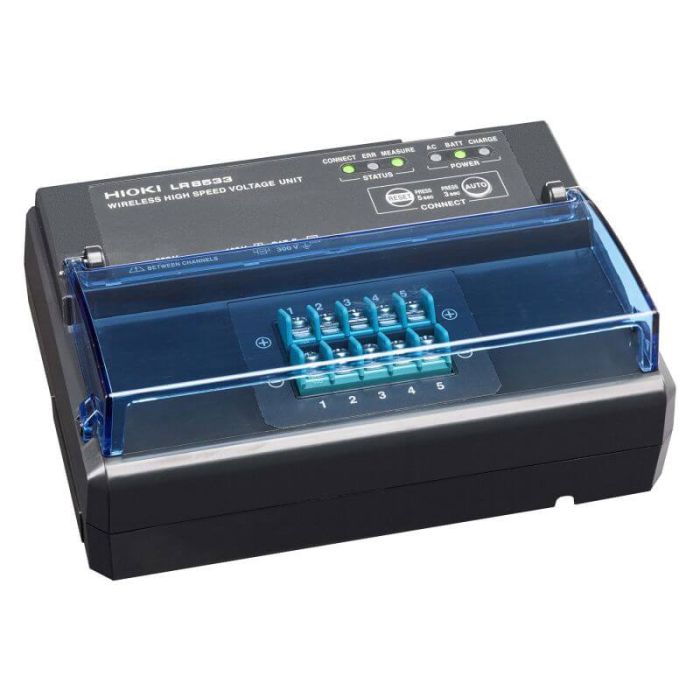

The LR8533 Wireless High-Speed Voltage Module is a 5-channel measurement module for the LR8450-01 Wireless Data Logger. Up to seven LR8533 modules can be connected to a single LR8450-01, allowing users to record and transfer data via wireless LAN of up to 35 channels in a single device. By combining the LR8450-01 with seven LR8533 and four U8553 plug-in modules the total setup can be extended to up to 55 channels.

This module supports precise DC voltage measurements with a direct input capacity of up to 100 V. Input signals are connected to the module through an M3 screw terminal block, providing secure connections even for conductors with larger cross-sections. Its 300 V isolation to earth and between channels ensures safe and reliable operation. The LR8533 module offers a fast update interval of 1 ms for all 5 channels simultaneously, making it ideal for measuring sensor outputs in the tens of Hertz range, such as pressure and vibration signals.

With a 16-bit A/D resolution, the LR8533 delivers high-precision data acquisition. The module offers seven measurement ranges, from ±100 mV to ±100 V, ensuring accurate readings across a variety of applications. To measure 4-20 mA signals, a 250 Ω shunt resistor can be used with the 1-5 V range, adding to the module's adaptability.

The LR8533 features wireless LAN capability, enabling seamless data transmission to the LR8450-01 Wireless Data Logger for real-time monitoring and analysis on its LCD display. Its compact design makes it ideal for installation in tight or hard-to-reach spaces. Additionally, the module offers flexible power options, supporting the use of both an AC adapter and an optional battery pack for versatile setup configurations.

This wireless module comes with an AC adapter (Z1008) and a mounting plate with screws, allowing the module to be securely attached to a wall or other flat surface.

Contact our expert team

We work closely with our technology partners to offer customers the best
lead time and prices we can achieve.



Contact our team for the latest availability and pricing information on
0330 313 3220, or use the request a quote button below and a member
of our team will be in touch.

Price £1,484.17
More Information
Attribute Value
Key Features
  • 5 channels, for voltage measurement
  • Wireless connection between LR8450-01 and measurement module, 30 m range
  • Sampling rate of up to 1 ms with 5 channels
  • For measuring various sensor outputs at several tens of Hz, such as pressure and vibration.
More Information
Attribute Value
Data Sheet Click here to view
