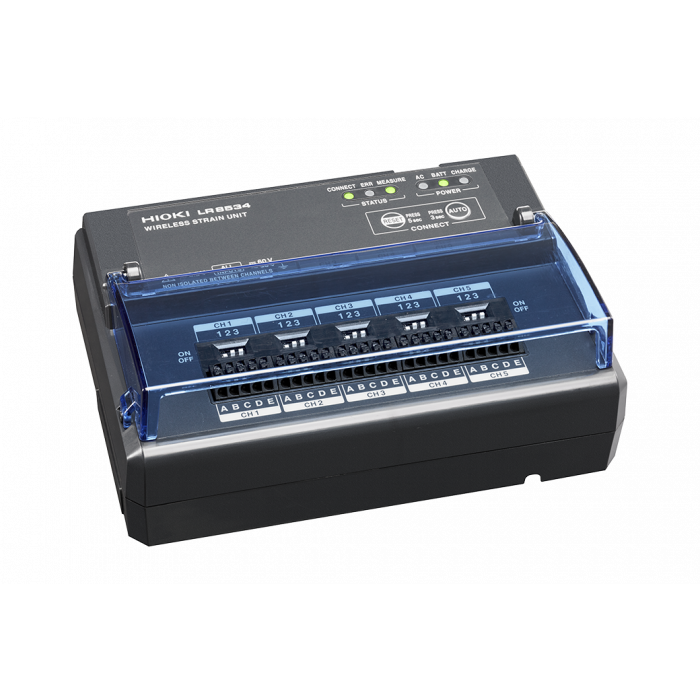

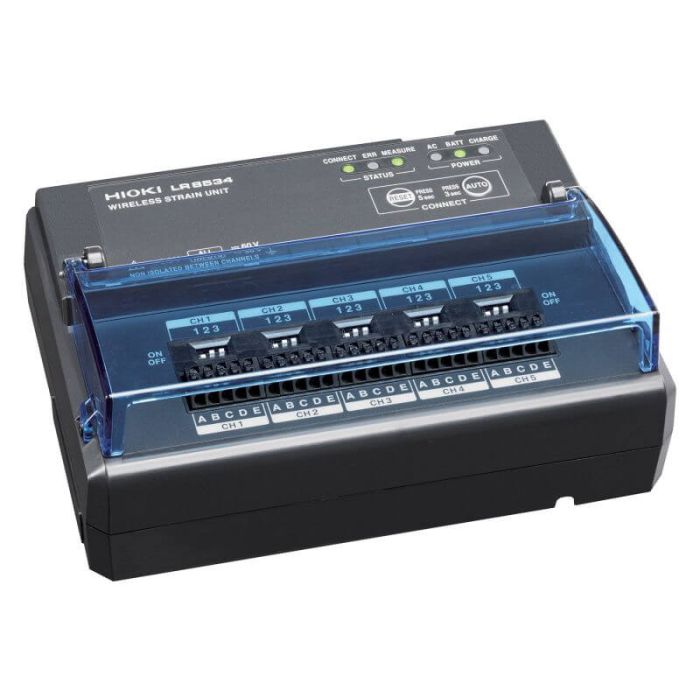

Wireless connection between LR8450-01 and measurement module, 30 m range
Sampling rate of up to 1 ms with 5 channels
Direct input of strain gages and strain gage transducers
Basic Specifications
Connectable instrument
Memory HiLogger LR8450-01 (Wireless LAN model)
Control communications
method
Connect wirelessly via Wireless LAN Adapter Z3230 (included)
Wireless LAN (IEEE 802.11b/g/n)
Communication range: 30 m (line of sight)
Encryption function: WPA-PSK/WPA2-PSK, TKIP/AES
Available number of channels: 1 to 11
Communications buffer
memory
4 M word (volatile memory)
Saves data in the event of a communications error. Data is resent when communications are restored.
Operating temperature
and humidity
-20°C to 55°C, 80% RH (no condensation)
(Charging temperature range: 5°C to 35°C)
Storage temperature
and humidity
-20°C to 60°C, 80% RH (no condensation)
Vibration resistance
JIS D 1601:1995 5.3(1), Class 1A (passenger vehicle) equivalent
LED display
Wireless connection, measurement status, error status, AC adapter/external power, battery power, charge status
Automatic connection function
Available
Accessories
Wireless LAN Adapter Z3230 × 1, Instruction manual × 1, AC Adapter Z1008 × 1, mounting plate × 1, M3×4 screw × 2 (for use with mounting plate), wiring confirmation label × 1
Number of input
channels
5 ch (Able to set voltage or strain for each channel)
Input terminals
Push-button type terminal block (5 terminals per channel), outfitted with terminal block cover
Set DIP switches according to measurement target.
