LRE-3255
LRE-3255
ETS-Lindgren

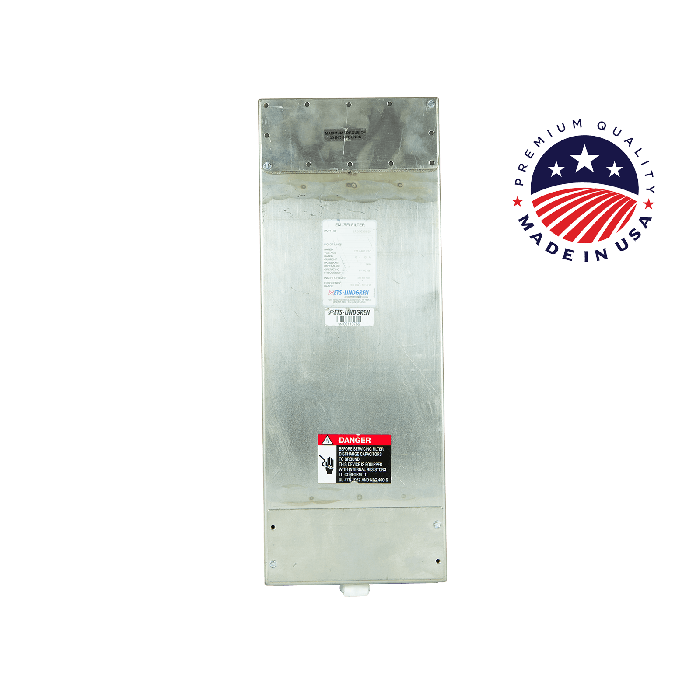

LRE Series Multiple Circuit Panel Filter, 3 x 255 A, 0-277/480 VAC
ETS-Lindgren LRE Multiple Circuit Panel Filter
Designed for moderate filtering requirements, typically used on mid-performance modular shielded rooms, screen rooms, or foil-lined rooms. Designed for two to four wire applications.
Key Features:
- High performance for moderate requirements
- 100 dB minimum insertion loss from 150 kHz to 40 GHz
- Dual or multiple line configurations
- Maximum voltage: 0-277 V to ground, 0-480 V line-to-line (60 Hz); 0-120 V to ground, 0-208 V line-to-line (400 Hz)
- Meets or exceeds MIL-STD-220C, UL-1283, MIL-F-15733
- 400 Hz versions available with -4 suffix
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Weight | 45 kg (100 lbs) |
| Current Rating | 3 x 255 A |
| Configuration | Wall Mount, Penetration Kit |
| Standards | MIL-STD-220C, UL-1283, MIL-F-15733 |
| Frequency Range | 150 kHz to 40 GHz |
| Insertion Loss | 100 dB minimum from 150 kHz to 40 GHz |
| Power Voltage | 0-277/480 VAC |
| Operating Voltages | 0-277/480 VAC |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
