LRW-2005-S1
LRW-2005-S1
ETS-Lindgren

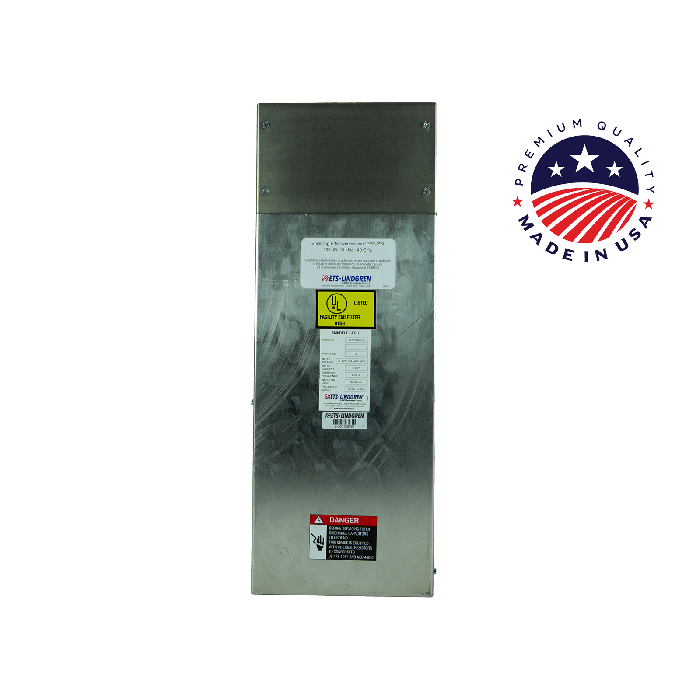

LRW Series Single/Dual Line Power Line Filter, 2 x 5 A, 0-277/480 VAC
ETS-Lindgren LRW Single & Dual Line Filter
UL Listed power line filter with mounting penetration and hardware for direct installation through a shielded wall. Designed for standard filtering requirements.
Key Features:
- Single and dual line configurations available
- 100 dB insertion loss from 14 kHz to 40 GHz per MIL-STD-220C
- Maximum voltage 0-277 V to ground, 480 V line-to-line, 0 to 60 Hz
- Manufactured to UL-1283 and IEC 60939
- In accordance with the Low Voltage Directive (2006/95/EC)
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Dimensions | 55.9 cm (22 in) x 20.3 cm (8 in) x 15.2 cm (6 in) (L x W x H) |
| Weight | 10.9 kg (24 lb) |
| Current Rating | 2 x 5 A |
| Configuration |
Penetration Kit |
| Standards | UL-1283, IEC 60939, MIL-STD-220C, LVD (2006/95/EC) |
| Frequency Range | 14 kHz to 40 GHz |
| Insertion Loss | 100 dB from 14 kHz to 40 GHz |
| Power Voltage | 0-277/480 VAC |
| Operating Voltages | 0-277/480 VAC |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
