LRX-1100-S3
LRX-1100-S3
ETS-Lindgren
LRX Series One Line Single Phase Power Line Filter, 1 x 100 A, 0-277/480 VAC, 50 kA short circuit rating

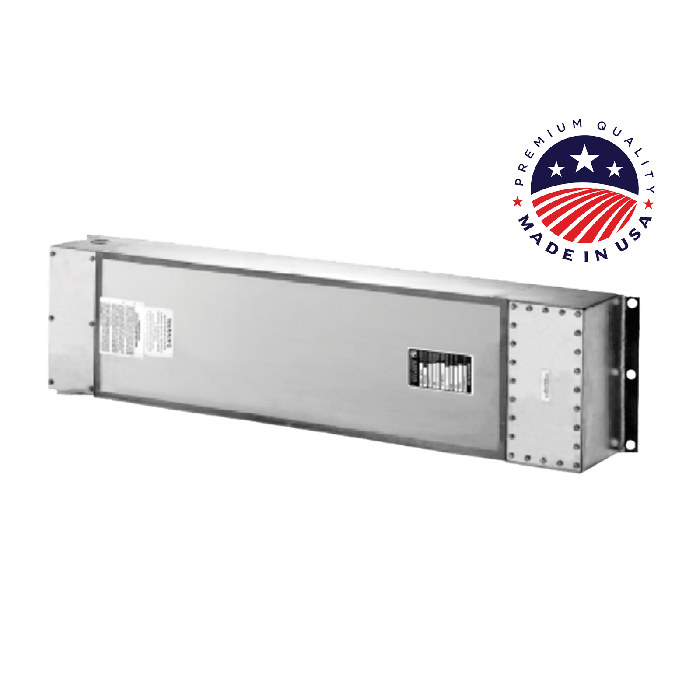

ETS-Lindgren LRX One Line Single Phase Filter
Individual, stand-alone single circuit filter from the LRX series of power line filters. UL Listed and manufactured in a variety of mechanical configurations.
Key Features:
- Designed for 0-277 V line-to-ground, 480 V line-to-line, 0 to 60 Hz applications
- Manufactured to the most current version of UL-1283
- In accordance with the Low Voltage Directive
- Meets MIL-F-15733, MIL-STD-220, UL-1283, IEC 60939, LVD standards
- Available with power supplies, custom-sized cases, electrical outlets, and mounting hardware
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Dimensions | 85.1 cm (33.5 in) x 15.2 cm (6.0 in) x 17.8 cm (7.0 in) (L x W x H) |
| Weight | 20.4 kg (45.0 lb) |
| Current Rating | 1 x 100 A |
| Filters | Style 3 (S3) - Shielded filter panel installation |
| Configuration | Filters Come with Power Supplies |
| Current | 50 kA |
| Standards | MIL-F-15733, MIL-STD-220, UL-1283, IEC 60939, LVD |
| Power Voltage | 0-277/480 VAC |
| Operating Voltages | 0-277/480 VAC |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
