LS2003xU-B

LS2003xU-B

LOCOSYS Technology

A complete standalone GNSS smart antenna module, including an embedded antenna and GNSS receiver circuit for a broad spectrum of OEM system applications

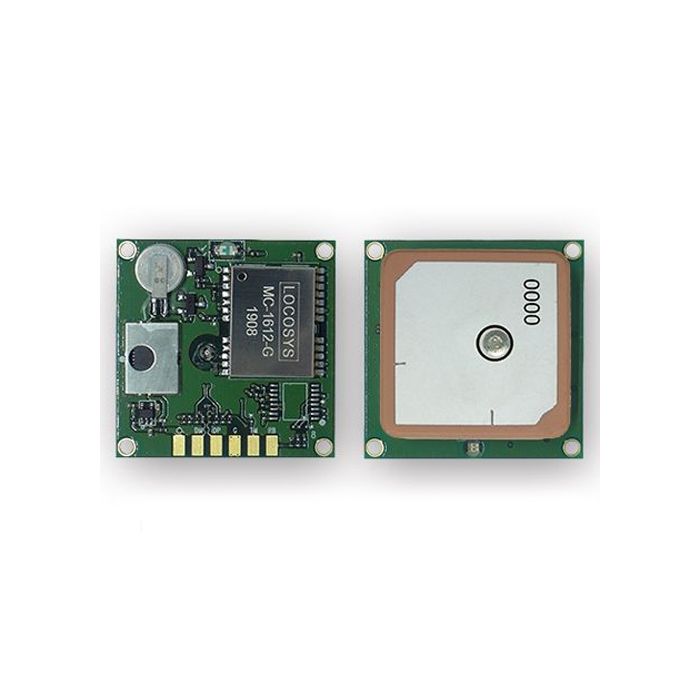

The LOCOSYS LS2003xU-B is a complete standalone GNSS smart antenna module that includes an embedded antenna and GNSS receiver circuits. Suitable for a broad spectrum of OEM system applications.

The LS2003xU-G is based on the proven technology of the built-in MT3333 chip solution. It can simultaneously acquire and track multiple satellite constellations that include:

  • GPS
  • BEIDOU
  • GALILEO
  • QZSS
  • SABS

The LOCOSYS LS2003xU-B provides superior sensitivity and performance in urban areas and dense foliage environments. Its far-reaching capability meets the sensitivity requirements of car navigation and other location-based applications.

Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Key Features
  • MediaTek high sensitivity and low power solution
  • Supports GPS, BEIDOU, GALILEO and QZSS
  • Capable of SBAS (WAAS, EGNOS, MSAS, GAGAN)
  • Supports 99-channel GNSS
  • Fast TTFF at a low signal level
  • Built-in 12 multi-tone active interference canceller
  • Free hybrid ephemeris prediction to achieve faster cold star
  • Built-in data logger
  • Indoor and outdoor multi-path detection and compensation
  • Support ±11ns high accuracy time pulse (PPS)
  • LED indicator for GNS positioning status
  • Build-in micro battery to reserve system data for rapid satellite acquisition
  • Support UART (TTL) / RS-232 / USB interface
More Information
Attribute Value
Data Sheet Click here to view
