LS2309x-G

LS2309x-G

LOCOSYS Technology

Complete GPS and GLONASS receiver based on proven LOCOSYS technology.

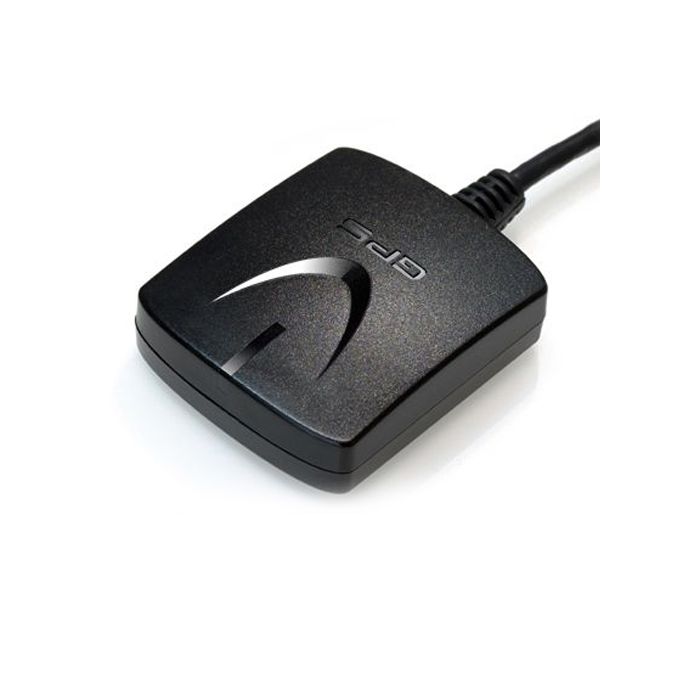

LS2309x-G series products are complete GPS and GLONASS receivers, also known as a mouse receiver. The mouse will track up to 32 satellites at a time while providing fast Time-To-First-Fix, one-second navigation updates and low power consumption. It can provide users with superior sensitivity and performance even in urban areas and dense foliage environments. Its far-reaching capability meets the sensitivity requirements of car navigation systems as well as other location-based applications.
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Key Features
  • STMicroelectronics TeseoIITM family single-chip solution
  • Support GPS/GLONASS/GALILEO/QZSS navigation systems
  • Based on chips compliant with "AEC-Q100" qualification. (STM 8088GA only)
  • Manufactured complied with IATF 16949
  • Fast TTFF at low signal level
  • Capable of SBAS (WAAS, EGNOS)
  • Built-in 3-state jammer barrier
  • Support of ST-AGPSTM Multimode Assisted GPS (extended ephemeris solution)
  • Built-in micro battery to reserve system data for rapid satellite acquisition
  • A magnet for mounting onto a vehicle
  • Skid-resistant pad on the bottom
  • Waterproof
More Information
Attribute Value
Data Sheet Click here to view
