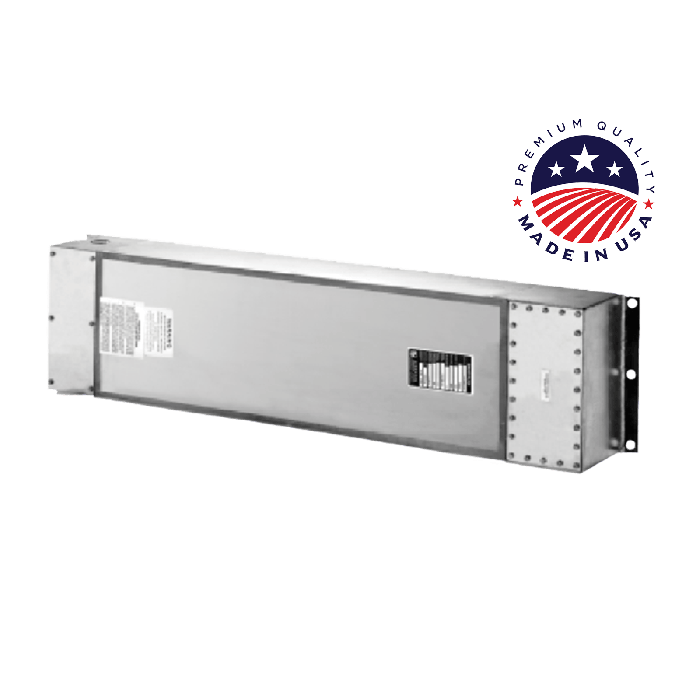

LTC-10640-100Z
LTC-10640-100Z
ETS-Lindgren
LTC Signal and Sensor Filter, 10 x 0.8 A, 0-125 VAC, 100Z impedance
ETS-Lindgren LTC Signal and Sensor Filter
Ideal for EMC testing, communication lines entering or leaving shielded rooms, computer rooms, communication terminal rooms, and SCIFs. Multiple circuits for 2 to 12 wires.
Key Features:
- 2 to 12 line LTC filter configurations
- Signal, sensor and voice communication applications
- Control line filtering
- Stand-alone, individual mounting design
- Optional threaded conduit pipe for shielded enclosure penetration
- Shielding in accordance with MIL-STD-285, NSA and TEMPEST requirements
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Weight | 25 lbs |
| Current Rating | 10 x 0.8 A |
| Configuration |
These Filters Canisters Can Come Without Penetration |
| Standards | MIL-STD-285, NSA, TEMPEST |
| Impedance | 100Z |
| Power Voltage | 0 - 125 VAC |
| Operating Voltages | 0 - 125 VAC |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
