LTC-2640-16Z
LTC-2640-16Z
ETS-Lindgren
P.A./Alarm Systems Filter, 2 lines, 1.5 A, 0 - 30 VAC, 16Z impedance

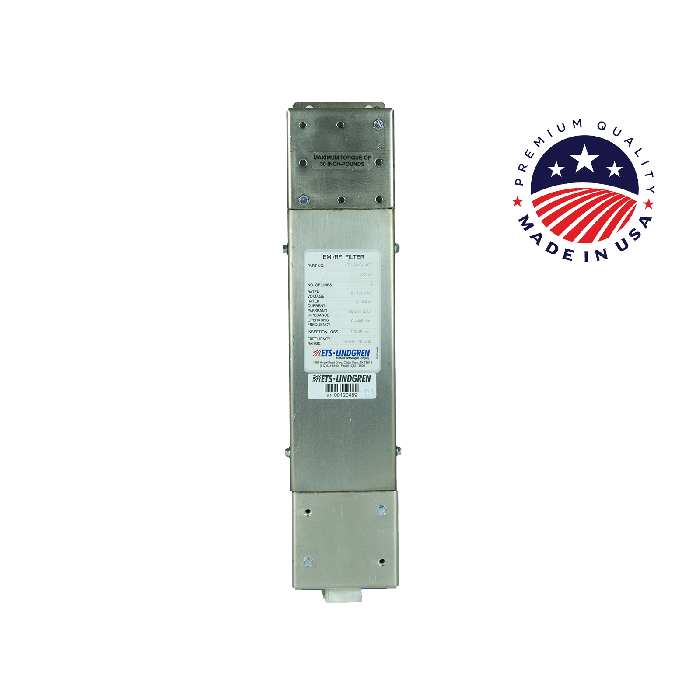

ETS-Lindgren P.A. Systems/Alarm Systems Filter
NEMA 1 type filter (for indoor controlled environments) with two compartments providing necessary isolation for secure applications. Filters mounted in panels wired to DIN type connectors on a DIN rail.
Key Features:
- 2 to 12 line LTC filter configurations
- Signal (140Z), Sensor (140Z), Speakers (8Z, 16Z), PA system (5000Z) applications
- Shielding in accordance with MIL-STD-285, NSA and TEMPEST requirements
- Optional threaded conduit pipe penetrations for single-point penetration
- Individual filters readily replaceable within panels
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Dimensions | 38.3 cm (15.25 in) x 7.62 cm (3 in) x 5.1 cm (2 in) (L x W x H) |
| Weight | 5 lbs |
| Current Rating | 1.5 A |
| Configuration |
These Filters Canisters Can Come Without Penetration |
| Standards | MIL-STD-285, NSA, TEMPEST |
| Impedance | 16Z |
| Power Voltage | 0 - 30 VAC |
| Operating Voltages | 0 - 30 VAC |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
