M1818
M1818
Focus Microwaves

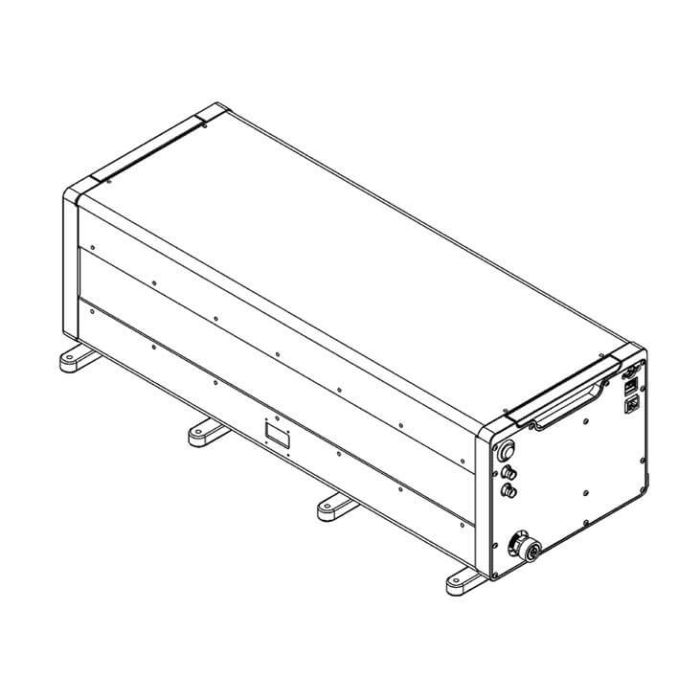

F0, 2F0, 3F0 Multi-Harmonic Low-Frquency DELTA Tuner (1.8 - 18 GHz)
The M is Focus’ flagship proprietary tuner technology. Its performance is unmatched and its capabilities make it the most versatile and popular tuner in the industry. Multi-purpose tuners (L) use two wideband probes, allowing independent control of the amplitude and phase of the reflection factor at two harmonic frequencies simultaneously.
The M technology is widely used for advanced applications like high power/ efficiency RF amplifier design. By controlling the harmonic impedances with an accuracy of >40dB at the source and load, users can generate more robust transistor behavior models and have better insight on how their device performs in all classes of operation.
The M can be used to pre-match impedances at the fundamental and the harmonic frequencies making it ideal for hybrid active systems, reducing significantly the power needed to drive the load of high power devices to |ΓLOAD|≤1. L tuners use two probes and control the fundamental Fo and one harmonic frequency (2Fo or 3Fo).
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
Attribute | Value |
---|---|
Minimum Frequency | 1.8 GHz |
Maximum Frequency | 18 GHz |
Maximum Power | 427 W |
VSWR Max | 85:1 |
Connectors | N, APC-7 |
Product Type | Multi-Harmonic Tuner |
Attribute | Value |
---|---|
Data Sheet | Click here to view |
