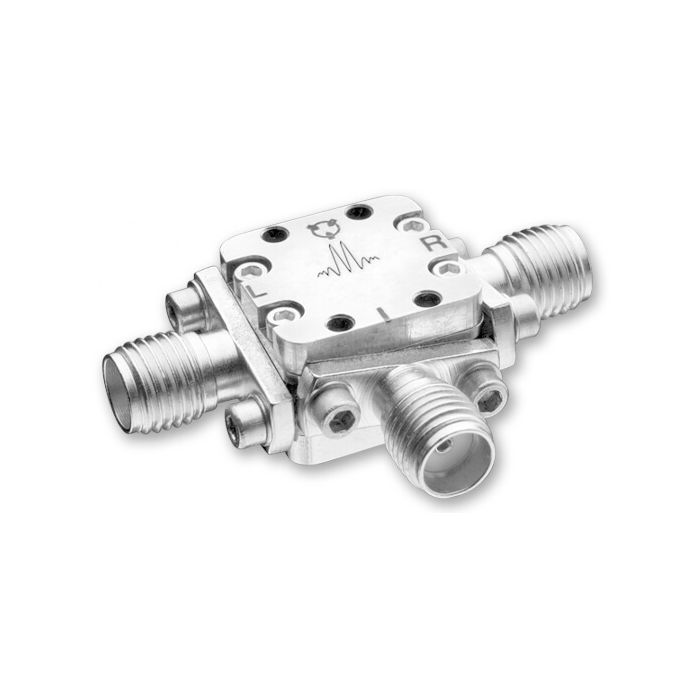

M2-0440
M2-0440
Marki Microwave
Triple-Balanced Mixers
Marki’s legendary hybrid mixers offer low conversion loss, high isolation, and low LO drive capability across incredible bandwidths. While they have been surpassed in nonlinearity performance by T3, MMIC, and Microlithic® designs in smaller form factor chip and surface mount packages, legacy mixer connectorised modules are still a sound choice for legacy systems and laboratory use.
M1 double balanced mixers have excellent isolations and conversion loss to 26 GHz. M2 triple balanced mixers offer ultrabroadband overlapping frequency coverage on all three ports. M4 diplexed IF mixers have very broadband RF/LO frequency coverage with low IF frequencies, excellent for test and measurement applications.
M8 mixers offer high isolations and very low conversion loss using a specially balanced technique. M9 millimeter wave double balanced mixers offer high frequency RF/LO coverage with high IF frequencies.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
Download The Marki Microwave Product Brochure
View Marki Microwave's full product range of RF, Microwave & mmWave Components Bare Die, Surface Mount and Connectorised DC to 140GHz.
| Attribute | Value |
|---|---|
| Key Features |
|
| IF (GHz) | 0.5 to 20 |
| LO Drive Min (dBm) | +10 to +20 |
| Conversion Loss (dB) | 10 |
| Isolations L-R (dB) | 25 |
| Isolations L-I (dB) | 25 |
| RF/LO (GHz) Low | |
| RF/LO (GHz) High | |
| Product Type | Legacy Mixer |
