M4162 Series DC-DC Holdup Units VITA 62 VPX SOLUTIONS

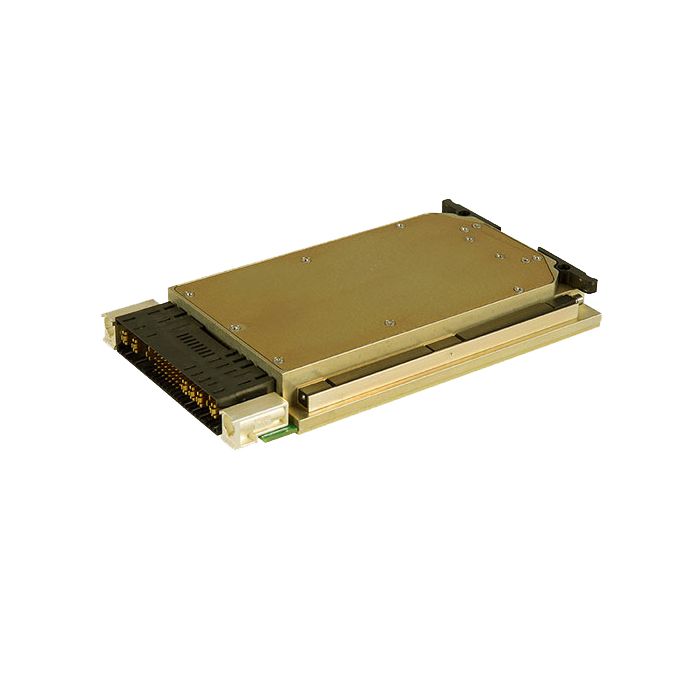

M4162 is a military grade, 3U VPX, 28V DC-DC PSU card that provides six outputs per VITA 62 that is rated at 350W output power and 9-15 Joules of holdup for MIL-HDBK-704-8, LDC201 requirements. Features include: conduction cooling, reverse battery protection, internal EMI filters. Custom outputs are available upon request.
This power supply is designed to meet the following standards:
- MIL-STD-810
- MIL-STD-461
- MIL-STD-704
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Form Factor | 3U |
| Product Type | Holdup Unit |
| Standards |
|
| Compliances | VITA 62 |
| Output Power | 48J |
| Power Efficiency | 0.98 |
| Filters | EMI Filters Included |
| Input | 1-100VDC |
| Communication Protocol | IPMI, 46.11 |
| Operating Temperature | -55°C to 85°C |
| Outputs | Single Output |
| Dimensions | 3U, 1" |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
