M4703
M4703
Enercon Technologies Europe
VITA 62 & SOSA™-Aligned VPX

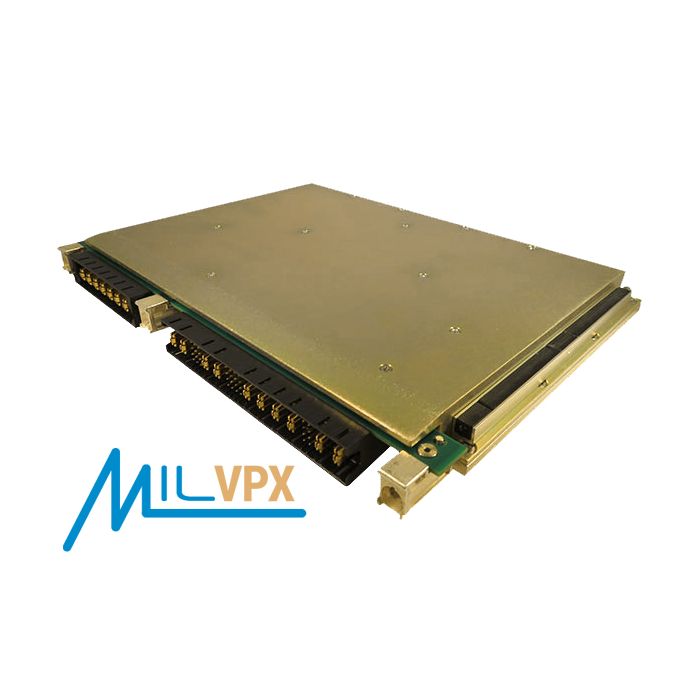

The M4703 is a ruggedised military grade VITA 62 & SOSA™-Aligned VPX with an input voltage range of 200-330VDC and Two output(s) with an output power rating up to 1200W. Custom outputs are available upon request.
This power supply is designed to meet the following standards:
- MIL-STD-704
- MIL-STD-810
- MIL-STD-461
- SOSA™
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Form Factor | 6U |
| Product Type | Power Supply (Converter) |
| Standards |
|
| Compliances | VITA 62 |
| Output Power | 1200W |
| Power Efficiency | 0.89 |
| Filters | EMI Filters Included |
| Output Range |
|
| Input | 200-330VDC |
| Current Share | Yes |
| Communication Protocol | 46.11 |
| Operating Temperature | -55°C to 85°C |
| Dimensions | 6U, 1" |
| Outputs | Dual Output |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
