M7029
M7029
Enercon Technologies Europe

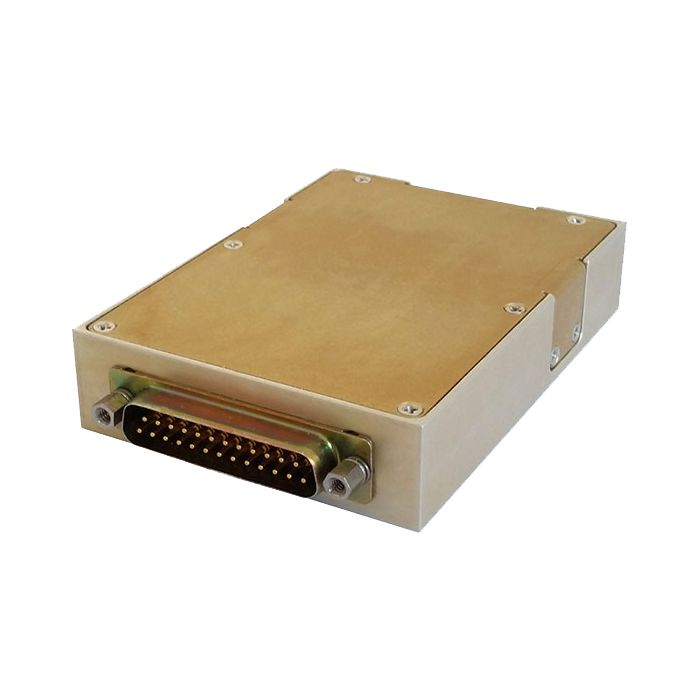

DC-DC Power Supply
The M7029 is a ruggedised military grade DC-DC Power Supply with an input voltage range of 18-48VDC and One output(s) with an output power rating up to 300W. Custom outputs are available upon request.
This power supply is designed to meet the following standards:
- MIL-STD-1275
- MIL-STD-704
- MIL-STD-810
- MIL-STD-461
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Form Factor | Baseplate Mount |
| Product Type | Power Supply (Converter) |
| Standards |
|
| Output Power | 300W |
| Fixed Switching Frequency | 250kHz |
| Power Efficiency | 0.9 |
| Filters | EMI Filters Included |
| Output Range |
|
| Input | 18-48VDC |
| Current Share | Optional |
| Operating Temperature | -55°C to 85°C |
| Dimensions | 95.25 x 70.1 x 20.57 mm |
| Outputs | Single Output |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
