M7100

This product is available in 5-7 weeks

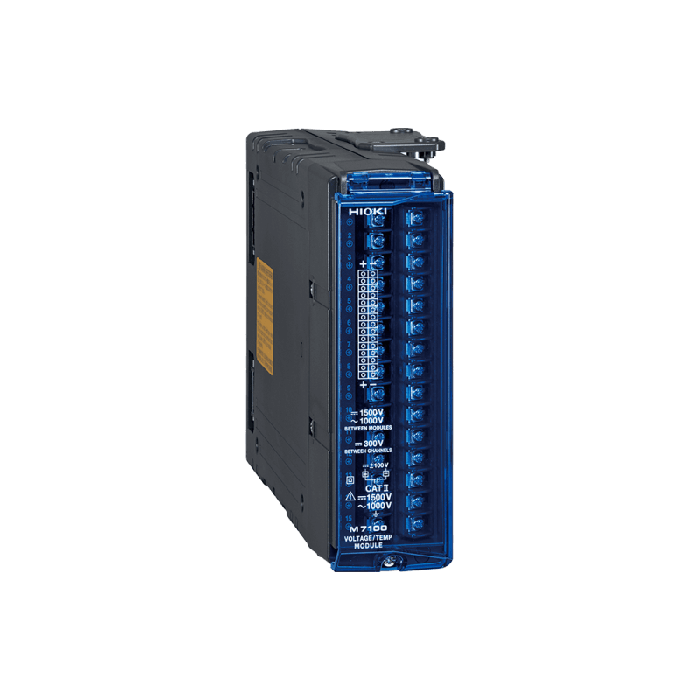

Voltage/Temperature Module for Main Unit LR8101 or LR8102

Key Features

• Measurements of DUTs at high voltages of up to 1500 VDC (isolation to earth)
• Easy installation without any cables via click-to-connect of modules
• Maximum channel input voltage: 100 VDC
• Channel to channel isolation: 300 VDC
• Isolation to earth: 1500 VDC, CAT II
• 15 channels per module, up to 10 modules per logger
• Max. 5 ms update interval

The M7100 module is specifically designed for the LR810x Data Logger Series (LR8101, LR8102). Each channel input can be configured to measure voltage or temperature (with thermocouples) in accordance with the test requirements. With a maximum channel input voltage of 100 VDC and channel-to-channel isolation of 300 VDC, the module provides robust performance for a variety of measurement scenarios. Additionally, with an isolation to earth of up to 1500 VDC, the module is ideal for applications involving high-voltage environments, especially in battery testing.

Up to ten M7100 can be connected to one LR810x Data Logger providing in total up 150 channels per unit. The sampling rate depends on the number of channels, with a maximum recording interval of 5 ms achievable. The click-to-connect module installation eliminates the cabling between modules and provides a clean, time-efficient setup.
