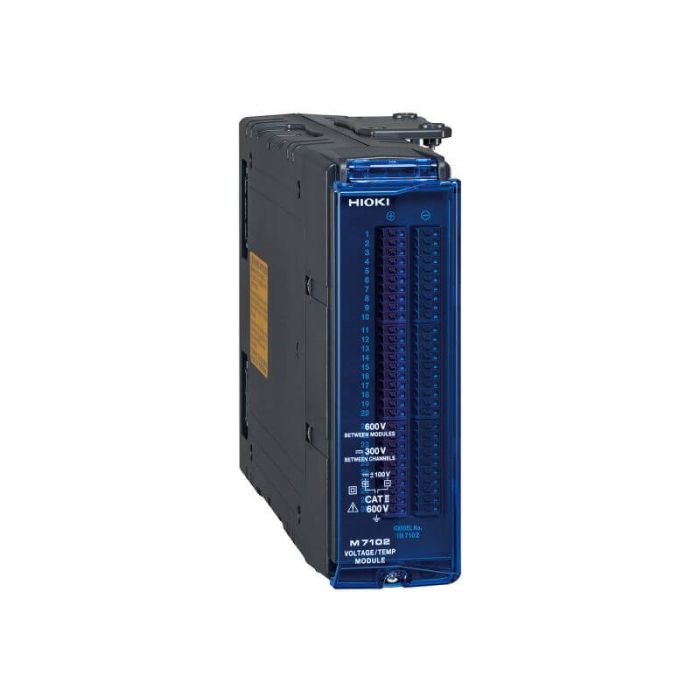

M7102

Hioki

30-Channel Voltage / Temperature Module for LR810x Data Logger Series

Skip to the end of the images gallery

Skip to the beginning of the images gallery

This product is available in 5-7 weeks

30-Channel Voltage/Temperature Module for LR810x Data Logger Series

Key Features

Easy installation without any cables via click-to-connect of modules
Maximum channel input voltage: 100 VDC
Channel to channel isolation: 300 VDC
Isolation to earth: 600 VDC, CAT II
15 channels per module, up to 10 modules per logger
Max. 5 ms update interval

The M7102 module is specifically designed for the LR810x Data Logger Series (LR8101, LR8102). Each channel input can be configured to measure voltage or temperature (with thermocouples) in accordance with the test requirements. With an isolation to earth of up to 600 VDC and 30 channels the module is ideal for applications requiring multi-channel measurement, especially in battery testing.

Up to ten M7102 can be connected to one LR810X Data Logger providing in total up 300 channels per unit. The sampling rate depends on the number of channels, with a maximum recording interval of 5 ms achievable. The click-to-connect module installation eliminates the cabling between modules and provides a clean, time-efficient setup.
