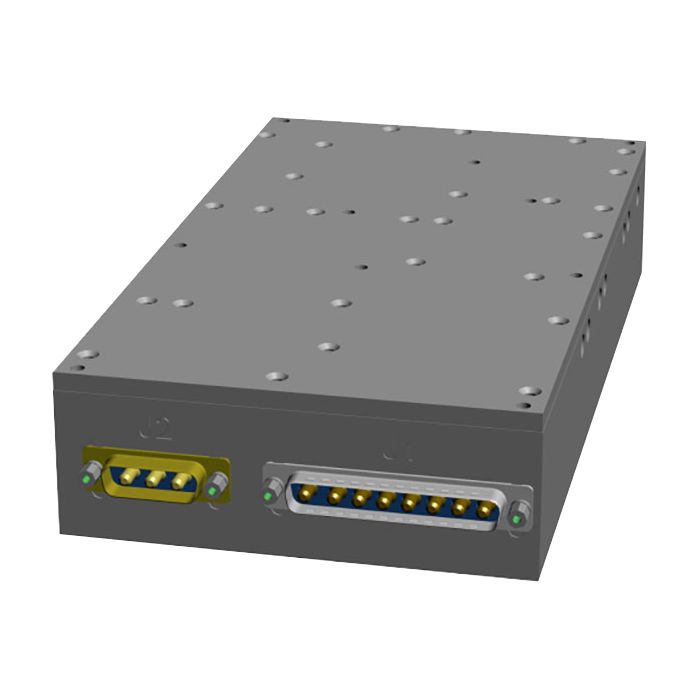

M7242 Series AC+DC/DC Power Supplies Single Phase
The M7242 Series is a ruggedised military grade AC+DC/DC Power Supply Single Phase with an input voltage range of 12-36DC / 85-265AC | Single Phase | 50/60/400Hz and one output with an output power rating up to 500W. Designed for a variety of applications including: Military (Airborne, ground mobile, shipboard), Telecom and Industrial. Custom outputs are available upon request.
This power supply is designed to meet the following standards:
- MIL-STD-810
- MIL-STD-704
- MIL-STD-461
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Form Factor | Baseplate Mount |
| Product Type | Power Supply (Converter) |
| Standards |
|
| Outputs | One |
| Output Power | 500W |
| Power Efficiency | 0.93 |
| Filters | EMI Filters Included |
| Output Range |
|
| Input | 12-36DC / 85-265AC | Single Phase | 50/60/400Hz |
| Operating Temperature | -40°C to 85°C |
| Dimensions | 228.35 x 126.75 x 46.23 mm |
