M9203
M9203
Enercon Technologies Europe
AC-DC Power Supply Three Phase

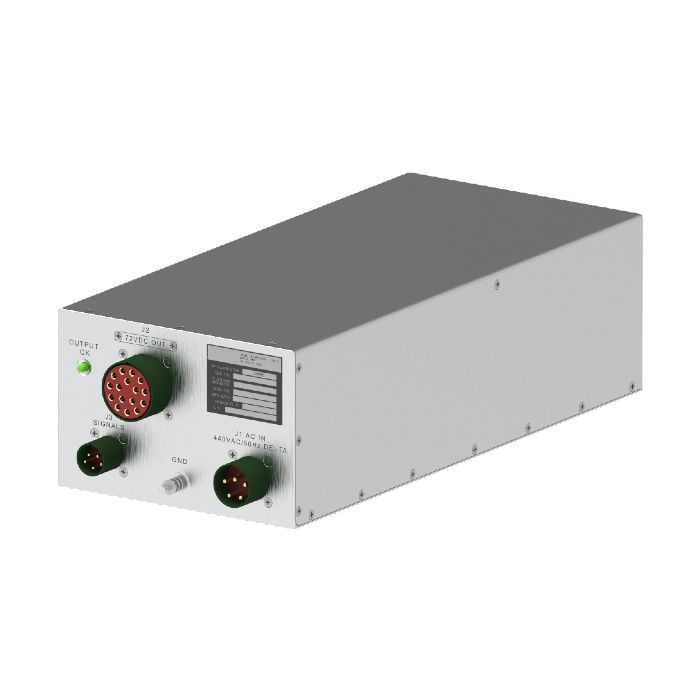

The M9203 is a ruggedised military grade AC-DC Power Supply Three Phase with an input voltage range of 355-485VAC | Three Phase | 50/60Hz and One output(s) with an output power rating up to 3200W. Custom outputs are available upon request.
This power supply is designed to meet the following standards:
- MIL-STD-1399
- MIL-STD-810
- MIL-DTL-901
- MIL-STD-461
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Form Factor | Baseplate Mount |
| Product Type | Power Supply (Converter) |
| Standards |
|
| Output Power | 3200W |
| Power Factor | 0.98 |
| Power Efficiency | 0.91 |
| Filters | EMI Filters Included |
| Output Range |
|
| Input | 355-485VAC | Three Phase | 50/60Hz |
| Current Share | Standard |
| Operating Temperature | -10°C to 80°C |
| Outputs | Single Output |
| Dimensions | 351.54 x 161.04 x 103.38 mm |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
