MC-1010-2RE
MC-1010-2RE
LOCOSYS Technology
GPS module featuring high sensitivity, low power and an ultra small form factor.

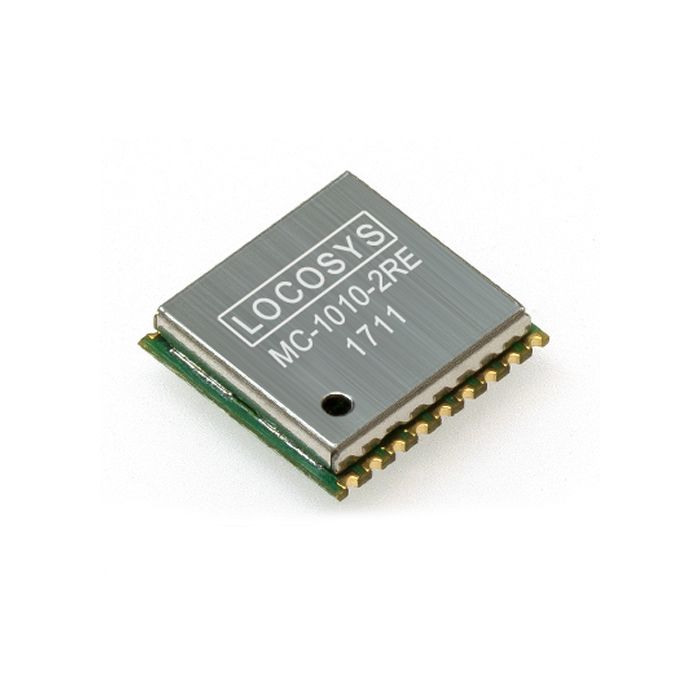

LOCOSYS GPS MC-1010-2RE module features high sensitivity, low power and ultra small form factor.
This GPS module's functionality is using MediaTek latest GPS, MT3337E, chip and it provides you with superior sensitivity and performance even in urban canyon and dense foliage environment.
This module supports self-generate orbit prediction, EASY™, to achieve faster cold start and warm start. The EASY™ is no need of both network assistance and host CPU’s intervention. The predication is valid for up to 3 days and updates automatically from time to time when GPS module is powered on and satellites are available.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Key Features |
|
| Maximum Input Voltage | 3.0V - 4.3V |
| Module Type | GPS Module |
| Satellite Systems | GPS, QZSS |
| Power (mA) | 17mA |
| VB (uA) | 6uA |
| Operating Temperature | -40 ~ 85°C |
| Interface | UART |
| Dimensions | 10.1 x 9.7 x 2.0 mm |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
