MC-1513-G
MC-1513-G
LOCOSYS Technology
Complete standalone GNSS module.

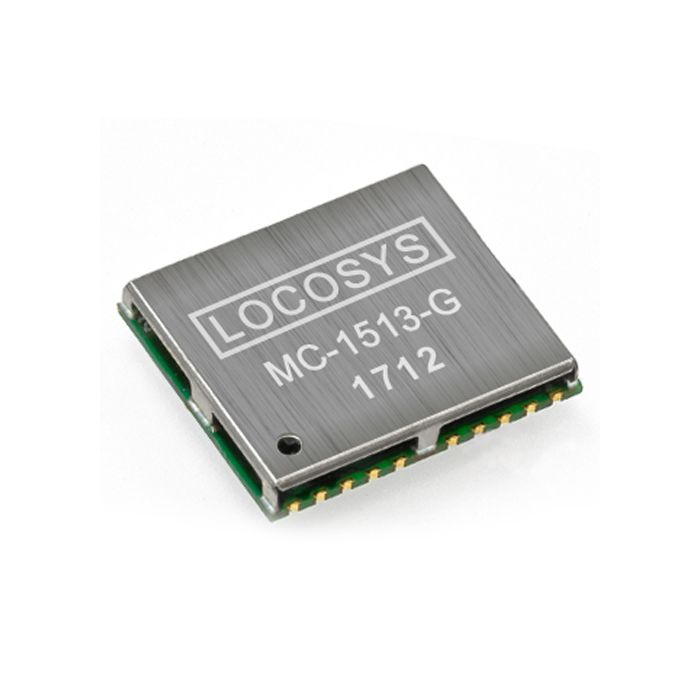

LOCOSYS MC-1513-G is based on MediaTek advanced new generation MT3333 GNSS chip. It is a complete standalone GNSS module which can simultaneously acquire and track multiple satellite constellations that include GPS, GLONASS, GALILEO, QZSS and SBAS.
It features low power and small form factor. Besides, it can provide you with superior sensitivity and performance even in urban canyon and dense foliage environment.This module supports hybrid ephemeris prediction to achieve faster cold start. One is self-generated ephemeris prediction (called EASY) that is no need of both network assistance and host CPU’s intervention.
This is valid for up to 3 days and updates automatically from time to time when GNSS module is powered on and satellites are available. The other is server-generated ephemeris prediction (called EPO) that gets from an internet server. This is valid for up to 14 days. Both ephemeris predictions are stored in the on-board flash memory and perform a cold start time less than 15 seconds.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Key Features |
|
| Maximum Input Voltage | 3.0V - 4.3V |
| Module Type | GNSS Module |
| Satellite Systems | GPS, GLONASS, GALILEO, QZSS |
| Power (mA) | 16mA |
| VB (uA) | 7uA |
| Operating Temperature | -40 ~ 85°C |
| Interface |
|
| Dimensions | 15 x 13 x 2.2 mm |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
