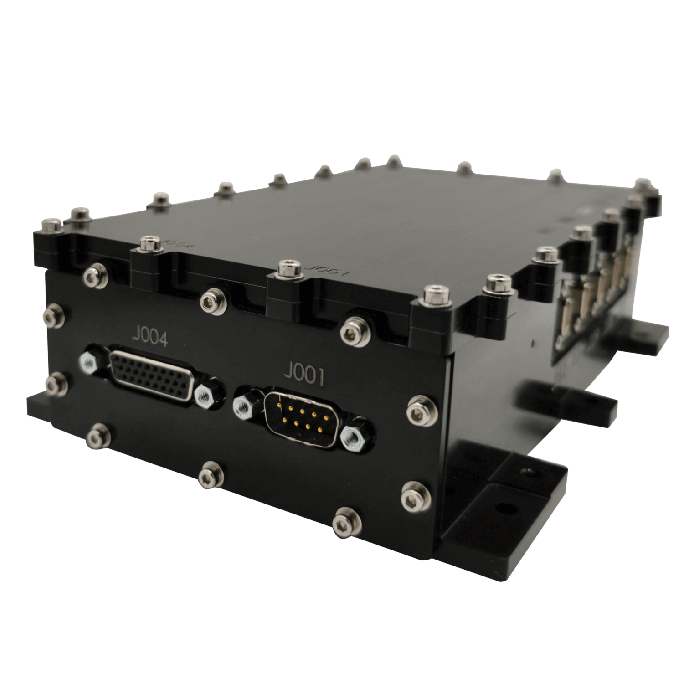

MCAM Multi Camera System
The MCAM Monitoring System is a space-grade multi-camera monitoring system allowing the capture of images and low-rate colour videos for monitoring purposes on a complex space platform (solar panels and antenna deployment monitoring, parts separation, payload or specific events monitoring).
3D PLUS MCAM multi camera system offers the possibility to operate up to seven IRIS cameras through one control box.
Key Features:
- Multi-configuration of IRIS-C
- Up to seven cameras
- Up to two IRIS-HD cameras on dedicated ports o SpaceWire harness up to 10m
- System performances
- Up to two IRIS cameras streaming simultaneously at 2 frame/s
- One IRIS-HD camera in snapshot mode full resolution at 1 frame/s or streaming at 30 frame/s in Full HD with h.264 compression
- Configurable camera sensors parameters (exposure, gain, framerate)
- Raw/binned mode, windowing mode on IRIS-HD cameras
- Reliability
- Class 1 missions, up to 15 years in GEO orbit
- Suitable for GEO, LEO and deep space missions
