AVAS-212

AVAS-212

Advantech

Medical Grade Video Streamer

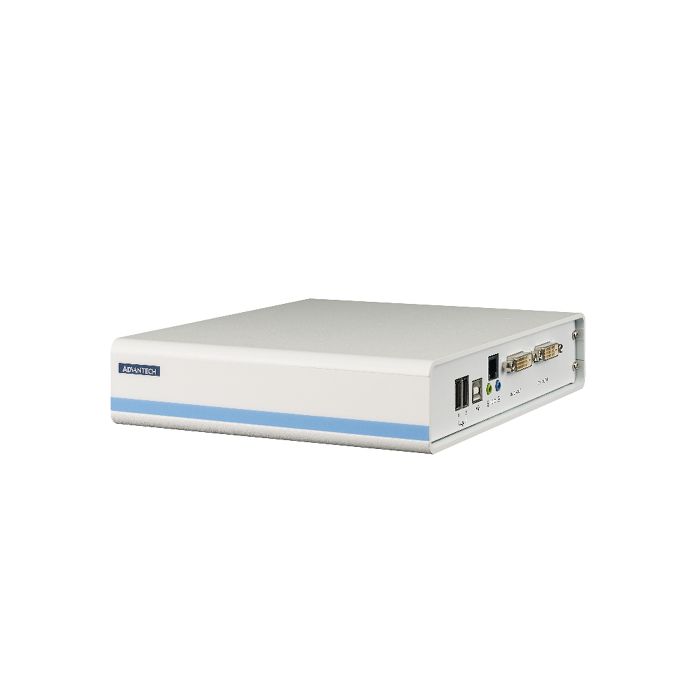

main product photo
AVAS-200 Series are IP-based data transmission system with a single-cable distribution architecture designed for operating rooms. This system supports video, audio, and control signal streaming with low latency and allows rapid switching between streams. Moreover, video data can be transmitted over 10 Gigabit Ethernet without compression or data loss.
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

Request a quote
More Information
Attribute Value
Input/Output Resolution 4Kp60 HDMI: 4Kp60 UHD (4096 x 2160, 60 frame rate), 1 x uncompressed video
4Kp30 HDMI: 4Kp30 UHD (4096 x 2160, 30 frame rate), 1 x uncompressed video
FHDp60 DVI: 4Kp30 UHD (1920 x 1080 , 60 frame rate), 1 x uncompressed video
Direct Display Uncompressed video, latency < 1 frame
Seamless Switching Latency 1 frame
Multiview Picture-in-Picture
  • Side-by-Side
  • Quad view
  • 1+3 bottom
  • 1+3 right
Network Bandwidth 10GbE
Network Cabling SFP+
Video In 4Kp60 HDMI: 1 x HDMI 2.0 input
4Kp30 HDMI: 1 x HDMI 1.4 Input
FHD DVI: 1 x DVI-D input single link
Video Out 4Kp60 HDMI: 1 x HDMI 2.0 output
4Kp30 HDMI: 1 x HDMI 1.4 output
FHD DVI: 1 x DVI-D output single link
RS232 1 x RJ-10 type connector (no function, for future use)
USB host 2 for USB 2.0 host type A connectors
Grounding 1 x Equipotential Terminal
DC input jack 1 for 12V DC power in
Ethernet 1 RJ45 1GbE (no function, for future use)
Status LED 1 for indicate the AVAS-212 operational status
SFP+ slot 1 for SFP+ module only
Accessories 12V DC Medical Power Support Unit (PSU)
Vesa mount 75 x 75 mm
Audio Out/In 2 for Audio out/in 3.5mm stereo jack connectors
Certifications FCC, UL 60601, CE EN60601, CB EN60601, MDD, CCC
USB 1 for USB 2.0 type B connector
Audio Analog audio in/out
Key Features
  • Signal transmission with zero latency to provide effective surgical assistance in Eye–hand coordination
  • Provision of open APIs to ensure easy system integration
  • Capability to transmit signals from different sources via 10 GB optical fiber, including video, images, audio, USB, and other sources
  • Capability to display Multi-view on a screen from different sources simultaneously
  • Ultra-fast and lossless video transmission over IP
  • Functionality as an encoder and a decoder at the same time
  • Support of control system for mouse, keyboard, and Touch Through
Operating Temperature 0 °C to +40 °C
Dimensions 176.5 x 220 x 44 mm
More Information
Attribute Value
Data Sheet Click here to view
