Smart Battery Kit
Smart Battery Kit
Advantech
Integrated Power System and Remote Management Package

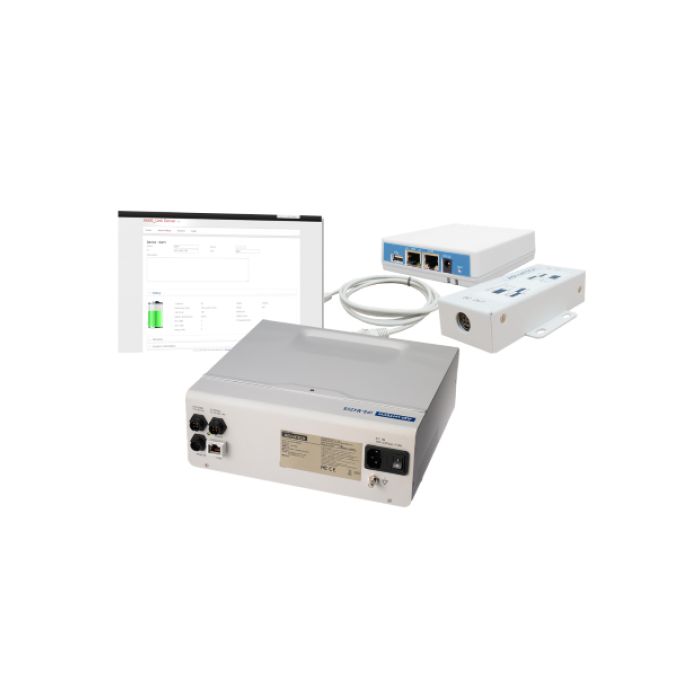

Advantech's Smart Battery Kit is a package designed especially for healthcare environments for providing safe and efficient power and facilitating remote power monitoring and management.
Advantech's IPS series is a medical-grade mobile power system, providing safe, stable and cost-efficient power to diversified mobile devices. In combination with the smart kit, which can bypass client-side PC and transfer real-time battery data to IT console directly, IT staff can monitor and manage the status of the battery remotely.
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Key Features |
|
| Vibration | 5- 500 Hz 1 G |
| Output Voltage |
System 1: 19 VDC, Max. 6 A System 2: 12 VDC, Max. 5 A |
| Certifications | CE, FCC Class B certified, CCC |
| Battery Type | Lithium Iron Phosphate (LFP) |
| Battery Capacity | 420 Wh |
| Battery Lifespan | DOD 80%, 2000 cycles |
| Charge time | < 3 hr. DOD 100% |
| Charging status indicator | LEDs with continuous readout; intelligent software |
| DC output interface | DC jack (4-pin locking mini-din connector) |
| Communication interface | RS-232 |
| Cooling system | Fanless |
| Water resistance | IP67 DC output connector |
| Operating Temperature | 30° C |
| Dimensions | 282 x 260 x 101 mm |
