MHOS HWM-P, MHOS HWM-S

MHOS HWM-P MHOS HWM-S

ELSE NUCLEAR

Contamination Monitors for Hospital Waste

The MHOS gamma monitors are designed to measure the level of radioactive contamination in hospital wastes while they are transported in carts inside small containers.

The measurement procedure is different according to the specific model and the requred specifications.
MHOS is available in two main configurations:

  • portal-shaped MHOS HWM-P contamination monitor
  • single column MHOS HWM-S with digital scale


MHOS HWM-P allows to detect contaminated material passing through the transit area defined by the two columns. This monitor is equipped with two plastic scintillators, each installed in one of the columns.

Data are expressed in counts per second (cps).

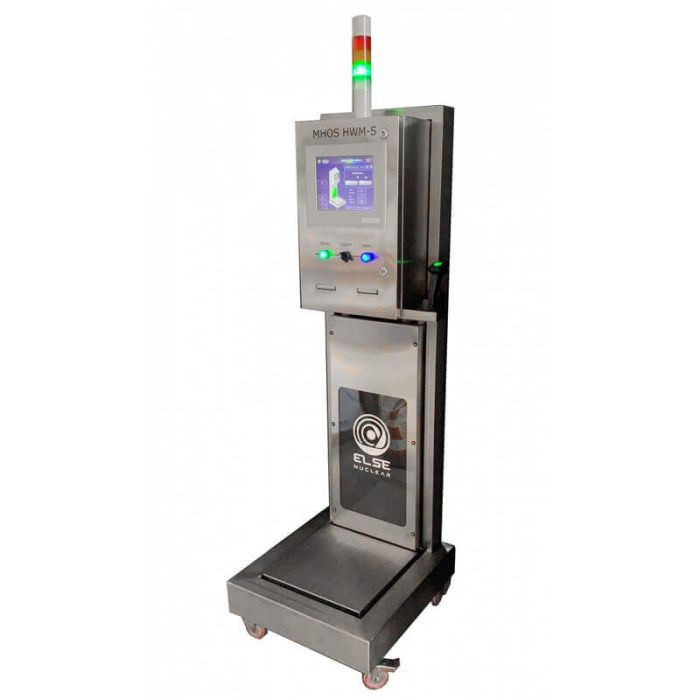

MHOS HWM-S performs a static measurement of the material, which is automatically started by the system once the bag/small container is placed upon the scale platform. This monitor employs a single plastic scintillator, mounted directly in front of the scale.
The weight and activity data are then elaborated to provide the radioactive concentration, expressed in Bq or Bq/g.

The acquisition and processing electronics is housed inside the detector columns, directly connected to the detectors. Through the built-in touch-screen panel PC, the operator can easily interact with the visualization software and manage the data, as well as the measurement parameters.

Key features

  • Highly adaptable systems
  • Fast and accurate measurement procedure
  • Simple user interface
  • Detectors: plastic scintillators
  • Touch-screen panel PC for data acquisition and analysis
  • Automatic background subtraction
  • Storage and/or print of alarm and malfunction events
  • Activity concentration calculation (HWM-S)
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Technical Specifications

Software Features

  • Autorun at the start-up of the system
  • Main panel indications:
    • Good-functioning/alarm status
    • Net measure
    • Measure unit
    • Instantaneous rate graph of the last 2 minutes
    • Net cps of each detector
  • Principal settable parameters:
    • Measurement time
    • Alarm threshold
    • Calibration factor
    • Lower limit for the alarm event’s saving
  • Graphic archive of acquired data
  • Protection password to access the parameters panel

MHOS HWM-P

Control console

  • Computer: industrial panel PC
  • Display: 8.4” LCD touch-screen (typical)
  • Ethernet port for remote PC communications
  • Relay: NO/NC contact available for interlock management

Alarm column - ALU

  • LED with siren
  • Green: good functioning, Red: alarm MHOS HWM-P contamination monitor

MHOS HWM-S

Control console

  • Computer: industrial panel PC
  • Display: 10” LCD touch-screen (typical)
  • Ethernet port for remote PC communications
  • Label printers (green and red labels, according to the measurement result)

Alarm column - ALU

  • LED with siren
  • White: ready, Yellow: measurement ongoing, Green: not contaminated, Red: alarm
Accessories

Barcode/QR reader

Warranty Warranty extension from 12 months to 24 months
Detection Unit

MHOS HWM-P


Detection units

  • Detectors: 2 plastic scintillators 50 x 20 x 5 cm
  • Lead shielding on the external sides, 10 mm thick
  • Energy range: 35 keV ÷ 2 MeV

MHOS HWM-S

Detection units

  • Detector: 1 plastic scintillator 50 x 20 x 5 cm
  • Lead shielding on the external sides, 10 mm thick
  • Energy range: 35 keV ÷ 2 MeV
Detection Housing

MHOS HWM-P

Housing

  • 2 steel columns
  • Dimensions, each column (HxWxD): 200 x 57 x 57 cm
  • Mobility: 2 fixed wheels, 2 pivoting wheels, for each column

MHOS HWM-S

Housing

  • 1 steel column
  • Dimensions (HxWxD): 200 x 58 x 62 cm
  • Mobility: 2 fixed wheels, 2 pivoting wheels
More Information
Attribute Value
Data Sheet Click here to view
