MIC-770 V3

MIC-770 V3

Advantech

Compact Fanless System with 12th/13th/14th Gen Intel® Core™ i CPU Socket (LGA 1700)

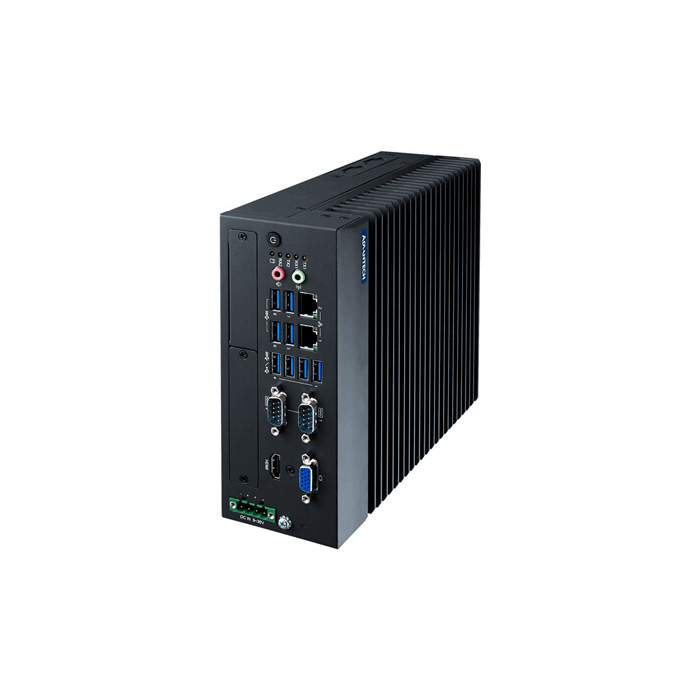

main product photo

High-Performance Compact Design with Flexible Expandability

Powered by the latest 12th Gen Intel® Core® i processor, MIC-770 V3 is designed as a high-performance open-source x86 platform capable of enabling the quick development of GPU-accelerated solutions. By Adopting MIC-75M20, a 2-slot expansion i-Module, this integrated solution is compatible with the NVIDIA L4 Tensor Core GPU with its small, energy-efficient, single-slot, low-profile 72W form factor. These features make it ideal for AI-based edge computing and inference. It delivers energy-efficient universal acceleration for AI inference, video, and graphics applications; and is ideal for global deployment in enterprise, cloud, and edge applications with limited space.

Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

Request a quote

More Information

More Information
Attribute Value
Key Features • Intel® 12th/13th/14th Gen Core™ i CPU socket-type (LGA1700) with Intel® R680E/ H610E chipset
• Wide operating temperature (-20 ~ 60 °C); VGA and HDMI output;
• 2 x GigaLAN, 2 x USB 3.2 (Gen2) and 6 x USB 3.2 (Gen1); 2 x RS-232/422/485 and 4 x RS232 serial ports (Optional)
• 1 x 2.5" HDD/SSD, 1 x mSATA, and 1 x NVMe M.2; 9 ~ 36 VDC input power range
• IP40 dust proof for deployment in harsh environment
• Supports FlexIO and iDoor technology, flexible configure additional HDMI, DP, DVI, COM port, DIO, Remote switch IO
• Supports Advantech i-Modules; Supports Advantech SUSIAPI and embedded software APIs
• Supports Intel® vPro™/AMT and TPM technologies; Supports Advantech iBMC 1.2 remote out-of-band power management solution on WISE-DeviceOn
• Support Windows 11 IoT Enterprise LTSC
