MIO-5271

MIO-5271

Advantech

4th Gen Intel® Core™ U-series (i5/Celeron®), 3.5" MI/O-Compact SBC, DDR3L, VGA, HDMI/DP*, 48-bit LVDS, 2GbE, 2 x Mini PCIe, mSATA, Fanless, MIOe

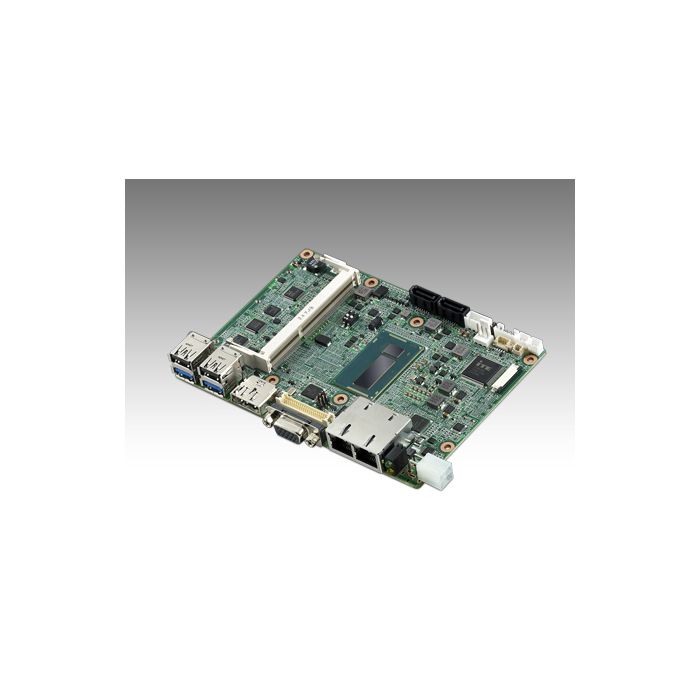

main product photo
Advantech's 3.5" MI/O-Compact embedded single board computers (SBC) measure 146 x 102 mm, offer scalable x86 performance for low-power Intel Xeon/Atom™/Core™ i7 platforms, and feature rich I/O, fanless operation, compact design, extended temperature range, and increased longevity.
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

Request a quote
More Information
Attribute Value
Key Features
  • 4th Gen Intel® Core™ U-series (i5/Celeron®), 1 x DDR3L-1600/1333 SO-DIMM support up to 8 GB
  • DirectX11.1, OpenGL4.0, OpenCL1.2, 3 independent display: VGA + LVDS +HDMI/Displayport*
  • Optimized thermal design with fanless solution for wide temperature
  • Flexible design using integrated multiple I/O: MIOe to approach vertical applications & keep domain knowhow
  • 2 GbE support, HD Audio, Rich I/O interface with 4 COM, 2 SATA, SMBus/I2C, GPIO, Half-size Mini PCIe, Full-size Mini PCIe w/ mSATA & 2 USB 3.0
  • Supports iManager, SUSI APIs, WISE-DeviceOn and Edge AI Suite
Product Type 3.5" SBC
More Information
Attribute Value
Data Sheet Click here to view
