MIOe-3680

MIOe-3680

Advantech

2-Port CAN-Bus MIOe Module with Isolation Protection

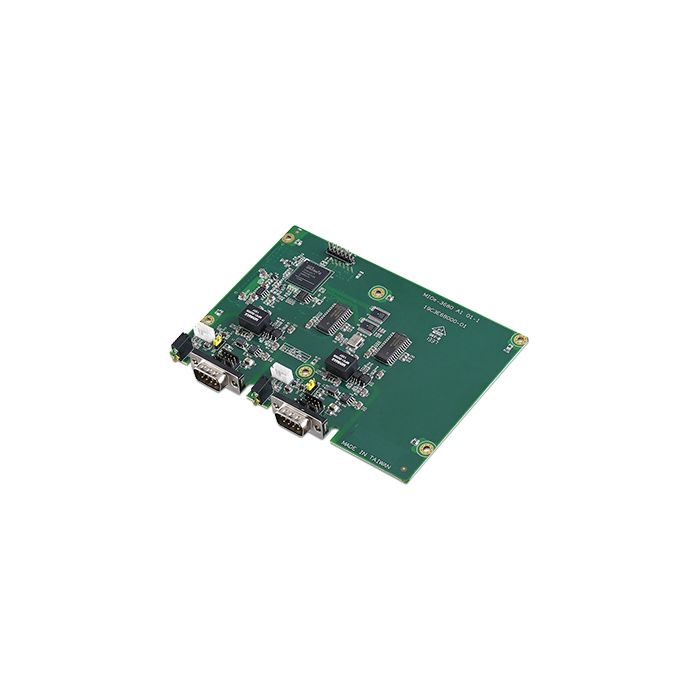

main product photo
Advantech‘s MI/O extension modules, supporting DisplayPort, PCIe, LPC, SMBus, CANBus, USB 2.0/USB 3.0, audio line-out, and power functions, are designed to be integrated with Advantech’s 2.5“ and 3.5” embedded single board computers (SBC) to offer extended functions.
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

Request a quote
More Information
Attribute Value
Key Features
  • Operates two separate CAN networks at the same time
  • High speed transmission up to 1 Mbps
  • 16 MHz CAN controller frequency
  • Optical isolation protection of 2,500 VDC ensures system reliability
  • I/O address automatically assigned by PCI PnP
  • LED indicates Transmit/Receive status on each port
  • Windows DLL library and examples included
  • Supports Windows CE5/CE6/XP/7 driver and utility
  • Supports Linux 2.4.xx / 2.6.xx; QNX 6.3x/6.4.x/6.5.x Intel x86 hardware platform
  • 2-Port CAN-Bus MIOe Module with Isolation Protection
Product Type MI/O Extension Modules and Evaluation Boards
More Information
Attribute Value
Data Sheet Click here to view
