mit-w102
mit-w102
Advantech

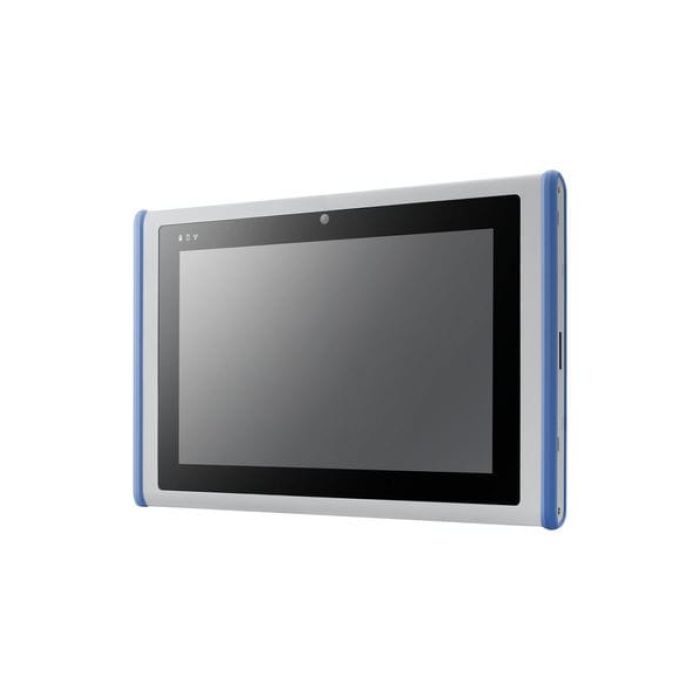

10" Medical Grade Tablet with Intel® Pentium® Processor and PCAP Touchscreen
MIT-W102 is equipped with Advantech’s DeviceOn/iService software, which is a next-generation unified device management solution based on the WISE-DeviceOn platform. With support for batch operations and multi-device control, DeviceOn/iService enables easy device configuration and deployment for convenient remote device management.
Moreover, MIT-W102 is equipped with Advantech’s DeviceOn/iService software, which is a next-generation unified device management solution based on the WISE-DeviceOn platform. With support for batch operations and multi-device control, DeviceOn/iService enables easy device configuration and deployment for convenient remote device management.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Colour | White |
| Key Features |
|
| Dimensions | 292 x 196 x 20 mm |
| Operating System | Windows 10 IoT Enterprise LTSC, Linux (available upon request) |
| Resolution | 1920 x 1200 |
| Processor | Intel® Pentium® N4200 processor Quad-core 1.1GHz (burst frequency: 2.5GHz) |
| Storage | 1 x m.2 SSD (default 64GB, supports up to 128GB) |
| IP Rating | IP65 |
| Input Voltage | 90 - 275VAC, 50 - 60Hz, 1.5A @ 115VAC/0.75A @ 230VAC |
| Bluetooth | Bluetooth V5.0,V4.2, V4.1, V4.0 LE, V3.0+HS, Bluetooth V2.1+EDR system |
| WLAN | Wireless IEEE 802.11a/b/g/n/ac |
| Speakers | 1 x Internal speakers (1.5W) |
| Certifications | FCC Class B, CE, IEC/EN/UL 60601-1, 62368-1 |
| Touch Type | Multi-point projected capacitive touch |
| Glass Type | Enhanced glass with anti-glare coating |
| NFC | ISO 15693, ISO 14443A/B, FeliCa, MIFARE, Tag-it, My-D, M24LRXX, I code 2 (optional) |
| Standard I/O |
|
| Docking | 1 x docking port |
| Audio Jack | 1 x Combo audio |
| Front Camera | 2.0-megapixel fixed-focus camera (optional) |
| Rear Camera | 5.0-megapixel aufo-focus camera with LED flash (optional) |
| Control Buttons |
2 x Programmable function keys 1 x power button |
| Operating Temperature | 0 - 35 °C |
| Display Type | 10.1" TFT LCD panel |
| Battery | 2860mAh @ 11.1V, (31.7 Whrs ) |
| Memory | LPDDR4 1600MHz 4GB on board memory (8GB upon request) |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
