ML6007

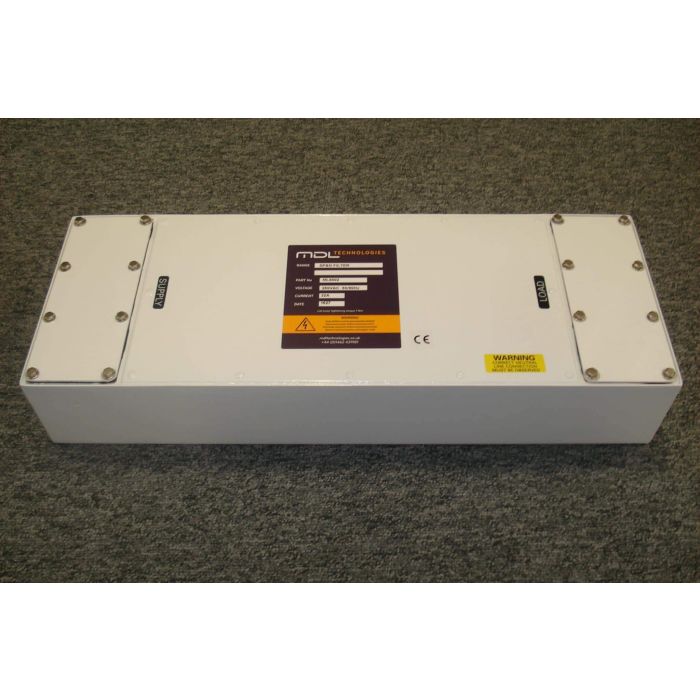

ML600X Series High Performance RF Power Filters

The ML600X Series range of High Performance EMI / TEMPEST / RF Power Filters provides a high level of protection for your equipment and test set-up by filtering against RF noise. Insertion loss in excess of 100dB is provided from as low as 10kHz for both off-load and on-load conditions.

The ML600X Series protects single- and three-phase circuits with current capability up to 400 Amps. Suitable for 50/60Hz applications. In addition, the single-phase 2-line versions can be used on DC supplies up to 600V.

These filters are typically available from stock (excluding ML6011) for immediate delivery.

Typical applications include:

• High Performance Shielded Room and Anechoic Chamber facilities providing protection of both incoming and outgoing supplies
• Tempest applications where a high degree of protection is required to obtain maximum security

All ML600X Series Filters meet or exceed the relevant performance and safety criteria defined within these standards: CISPR17:2011, EN60950, MIL-F-15733, MIL-STD-220C, UL1283

Key Features:

• Filters are typically available from stock for immediate delivery
• Compact, rugged construction for space-restricted applications
• All filters supplied with feed-through penetrations and fixings as standard
• Filters supplied with site-configurable conduit exit holes on the output (load) side of the filter for shielded room (rear entry) or standard wall (straight through) mounted applications
• Transient suppressors options are available
