MM1-0832L
MM1-0832L
Marki Microwave
GaAs MMIC Double Balanced Mixer
The MM1-0832L is a GaAs MMIC double balanced mixer that is designed for and operates at X through K bands. MM1-0832L is a low power K band mixer that works well as both an up and down converter.
This mixer offers low conversion loss and high LO to RF isolation over a broadband X to K band. The sister component MM1-0832H is recommended for high linearity applications.

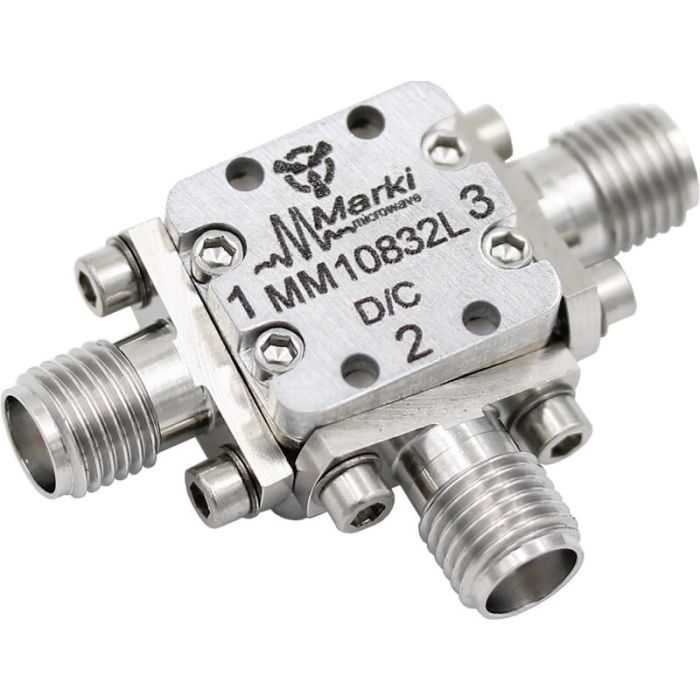

The MM1-0832L is available as both a wire bondable die and as a connectorised module
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
Download The Marki Microwave Product Brochure
View Marki Microwave's full product range of RF, Microwave & mmWave Components Bare Die, Surface Mount and Connectorised DC to 140GHz.
| Attribute | Value |
|---|---|
| Key Features |
|
| Applications |
|
| IF (GHz) | 0 to 12 |
| LO Drive (dBm) | +7 to +15 |
| Conversion Loss (dB) | 8 |
| Isolations L-R (dB) | 46 |
| RF/LO (GHz) Low | 8 |
| RF/LO (GHz) High | 32 |
| IIP3 (dBm) | +13.5 |
| Product Type | MMIC Bare Die/Modules |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
