MM1-2567LSM
MM1-2567LSM
Marki Microwave
GaAs MMIC Double Balanced Mixer
The MM1-2567LSM is a GaAs MMIC double balanced mixer that is optimised for high frequency applications. MM1-2567LSM is a Ka to V band mixer that works well as both an up and down converter. This mixer offers low conversion loss and high isolation at low LO powers.

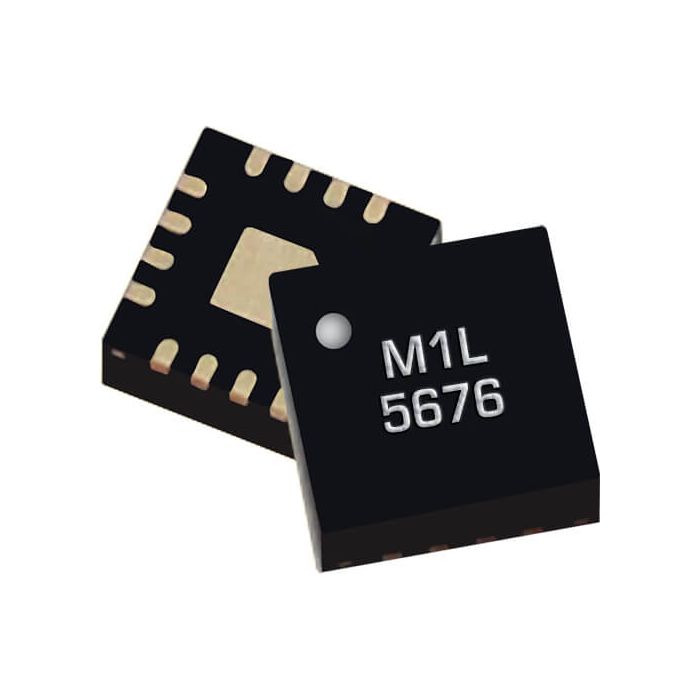

The MM1-2567LSM is available in a 3x3 mm QFN package. Evaluation boards are available.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
Download The Marki Microwave Product Brochure
View Marki Microwave's full product range of RF, Microwave & mmWave Components Bare Die, Surface Mount and Connectorised DC to 140GHz.
| Attribute | Value |
|---|---|
| Key Features |
|
| Applications |
|
| IF (GHz) | 0 to 30 |
| LO Drive Min (dBm) | +10 to +16 |
| Conversion Loss (dB) | 11 |
| Isolations L-R (dB) | 40 |
| RF/LO (GHz) Low | |
| RF/LO (GHz) High | |
| IIP3 (dBm) | +9 |
| Product Type | MMIC/Microlithic Surface Mounts |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
