Mosaic-G5 P6

mosaic-g5-p6

Septentrio

Ultra-compact multi-frequency GNSS receiver with premium resilience

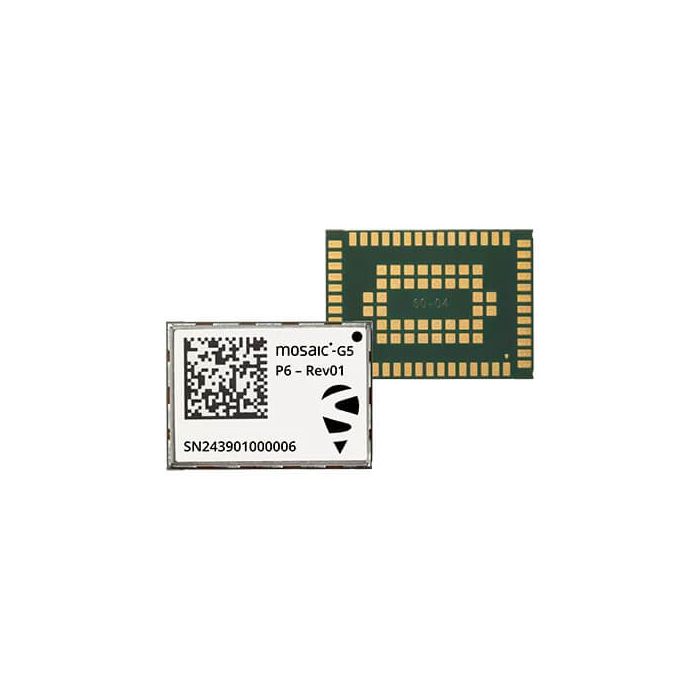

main product photo

GNSS technology

789 hardware channels for simultaneous tracking of all visible supported satellite signals:

  • GPS: L1C/A, L1C, L2C, L2PY, L5
  • GLONASS: L1CA, L2CA, L2P, L3 CDMA
  • Beidou: B1I, B1C, B2a, B2b, B2I, B3I
  • Galileo: E1, E5a, E5b, E5 AltBoc, E6
  • QZSS: L1C/A, L1 C/B, L2C, L5, L6
  • Navic: L5
  • On module L-band (in single antenna configuration)

GNSS Heading

Galileo High Accuracy Service (HAS)

Galileo OSNMA

Full raw measurement data

4-constellation RTK (rover)

Contact us for Lead Time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

Request a quote
More Information
Attribute Value
Size 22.8 x 16.4 x 2.4 mm
Weight 2.2 g
Operating Temperature -40 to 85°C
-40 to 185°F
Data connection protocol

Septentrio Binary Format (SBF)

NMEA 0183, v2.3, v3.03, V4.0
Vibration IEC 60721-3-5 Profile 5M3
Certifications CE, FCC, RoHS, WEEE
Data Update Rate

(Maximum)

Position: 100 Hz

Measurements only: 100Hz

Standalone, DGNSS + attitude: 50Hz

RTK + attitude: 50Hz
GNSS Technologies

Septentrio's patented GNSS+ technologies:

  • AIM+ Premium with enhanced jamming and spoofing protection offering superior wideband resilience and OSNMA authentication in demanding RF environments
  • APME+ a posteriori multipath estimator for code and phase multipath mitigation
  • LOCK+ superior tracking robustness under heavy mechanical shocks or vibrations
  • IONO+ Full Protection provides advanced protection against ionospheric disturbances
  • RAIM+ receiver autonomous integrity monitoring
Other Positioning Modes Accuracy

Standalone: 1.2 m (Horizontal) 1.9 m (Vertical)

SBAS: 0.6 m (Horizontal) 0.9 m (Vertical)

DGNSS: 0.4 m (Horizontal) 0.7 m (Vertical)

HAS: 0.1 m (Horizontal) 0.2 m (Vertical)
RTK Performance

Horizontal accuracy: 0.6 cm + 0.5 ppm

Vertical accuracy: 1 cm + 1 ppm

Initialization time: 7s
Time Precision

PPS precision: 5 ns

PPS jitter: ±0.7 ns

Event accuracy: < 3 ns
Electrical

Antenna pre amplification range:
15-50 dB SA
15-35 dB DA

Antenna bias voltage:
3.0-5.5V Built-in current limit (150mA)

Input voltage:
3.3 VDC

Power cons

Latency < 10 ms
Time To First Fix

Cold start: < 35 s

Warm start: < 10 s

Re-acquisition: 1 s
Tracking Performance

(C/N0 threshold)

Tracking: 20 dB-Hz

Acquisition: 30 dB-Hz
Velocity Accuracy 3 cm/s
More Information
Attribute Value
Data Sheet Click here to view
