Tektronix MP5000 Series – Modular Precision Test Systems
MP5103 chassis, MSMU60‑2 SMU and MPSU50‑2ST PSU. Modular precision for RF, 5G and advanced electronics.
Build a scalable test platform with the MP5103 chassis and plug-in modules like the MSMU60-2 SMU and MPSU50-2ST PSU. Achieve high accuracy, flexibility and automation in one system.
One Mainframe — More Options
Configure a precision test system tailored to your application. Start with the low-profile, three-slot MP5103 chassis and add modules like the MSMU60-2 Source Measure Unit and MPSU50-2ST Power Supply Unit to scale capability as needs evolve.
- Mix & match SMU/PSU modules in one mainframe.

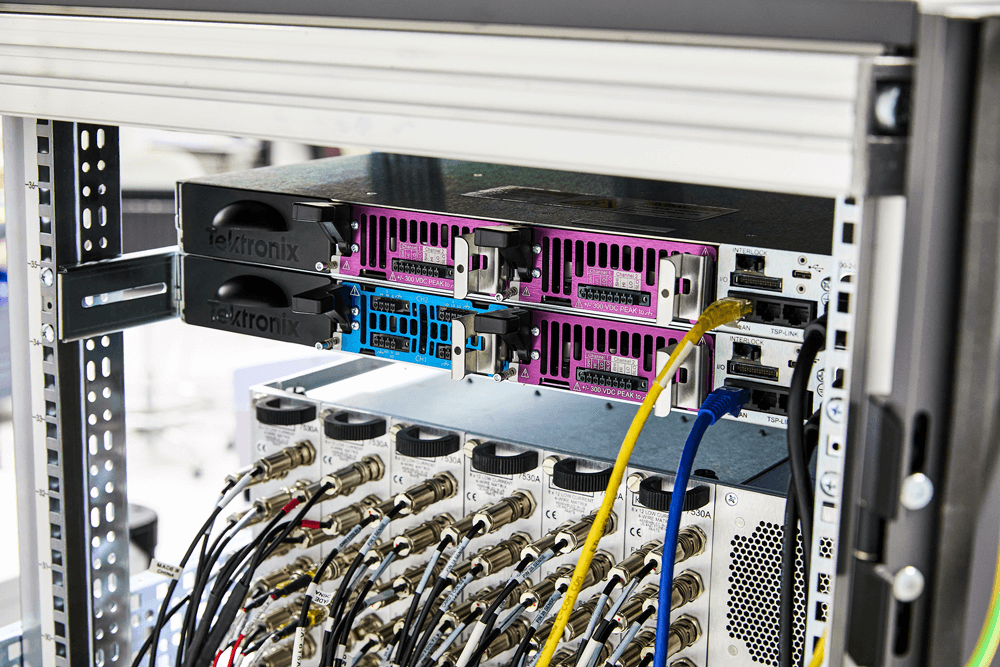

- Rack/Stack/Link mainframes together to scale from validation to production environments.
- High precision with stable, reproducible results
- Modular scalability from prototype to production
- Fast setup and automation integration
- Global service, calibration and support
Models at a Glance
Build your Precision Test System
|
Feature |
MP5103 |
MSMU60-2 |
MPSU50-2ST |
|
Role |

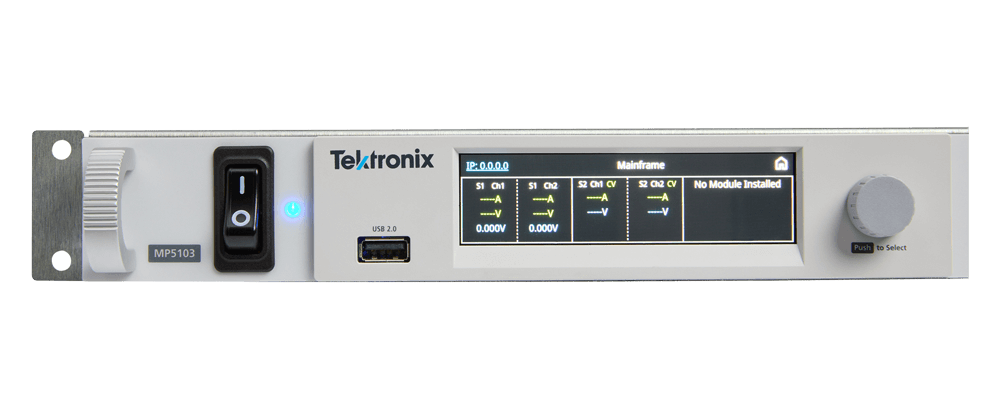

Chassis (3-slot, low profile) |

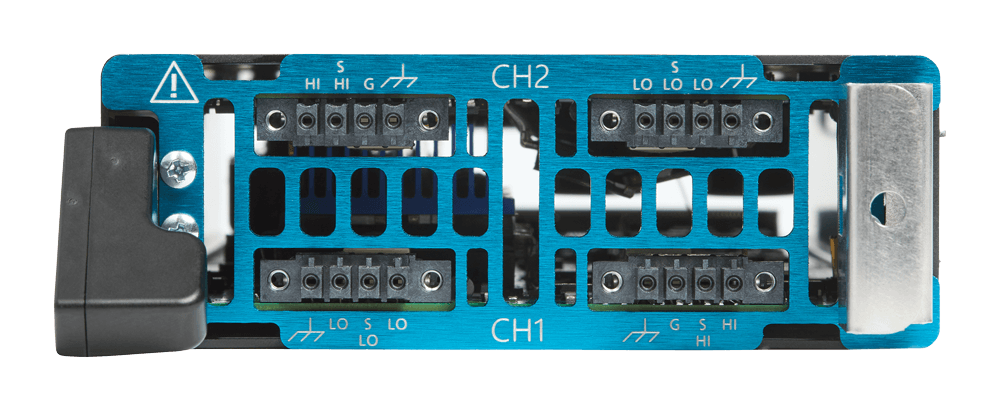

Source Measure Unit (SMU) |
Power Supply Unit (PSU) |
|
Total Power |
- |
30 W |
50 W |
|
Max Voltage |
- |
60 V |
50 V |
|
Max Current |
- |
1.5 A |
5 A |
|
Channels |
- |
2 |
2 |
|
Typical Applications |
System backbone & module hosting |
Precision sourcing & measurement |
Dual-channel power supply & load test |
Need full specs? Download the MP5000 Series datasheet.
Engineered for Advanced Applications
RF Component Validation
Combine SMU and PSU modules to characterise RF front-end components with synchronised sourcing and measurement.
5G & Wireless Testing
Scale channels and power envelopes to accelerate subsystem verification for 5G and emerging wireless standards.
Automated Production Test
Leverage modularity for rapid reconfiguration and high-throughput test in manufacturing environments.
Frequently Asked Questions
What is the Tektronix MP5000 Series?
The MP5000 Series is a modular precision test platform that combines a chassis with plug-in modules to create scalable test systems.
Which module should I choose for my application?

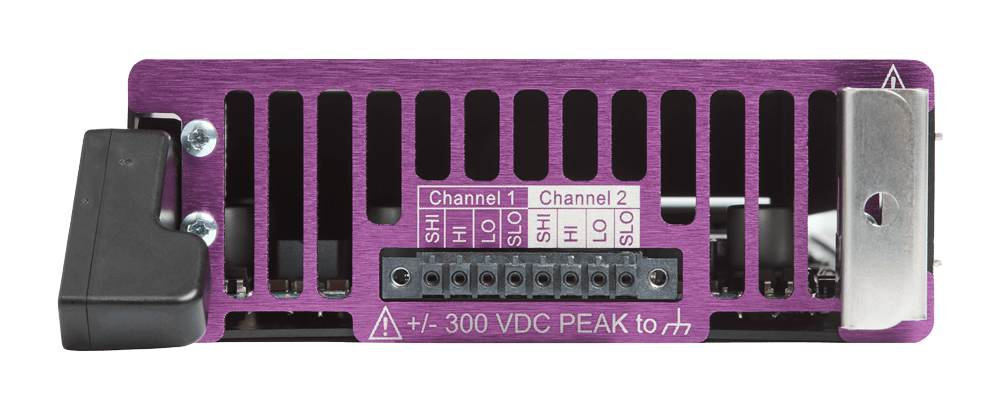

Use the MSMU60-2 SMU for precision sourcing/measurement up to 60V/1.5A. Choose MPSU50-2ST for dual-channel power supply up to 50V/5A. The MP5103 hosts modules.
How do I integrate with automation?
Certifications & Compliance
ISO 9001 Quality Management
CE & FCC Compliance
Calibration & Global Service
Request a Live Demo
