MR8902

This product is available in 5-7 weeks

Key Features

• Channels: 15, for voltage/temperature measurement
• Input Connectors: Push button terminal (voltage/thermocouple)
• Voltage Measurement Ranges: 500 µV to 5 V/div (9 ranges)
• Temperature Measurement: Thermocouple types K, J, E, T, N, R, S, B, WRe5-26
• Resolution: 1/1000 of measurement range (16-bit A/D converter)
• Digital Filter: 50 Hz, 60 Hz, or OFF
• Data Refresh Rate: 10 ms to 2 s (depending on filter settings)
• Max Allowable Input: 100 V DC
• Dimensions: 119.5 mm (W) × 18.8 mm (H) × 184.8 mm (D)
• Weight: 190 g

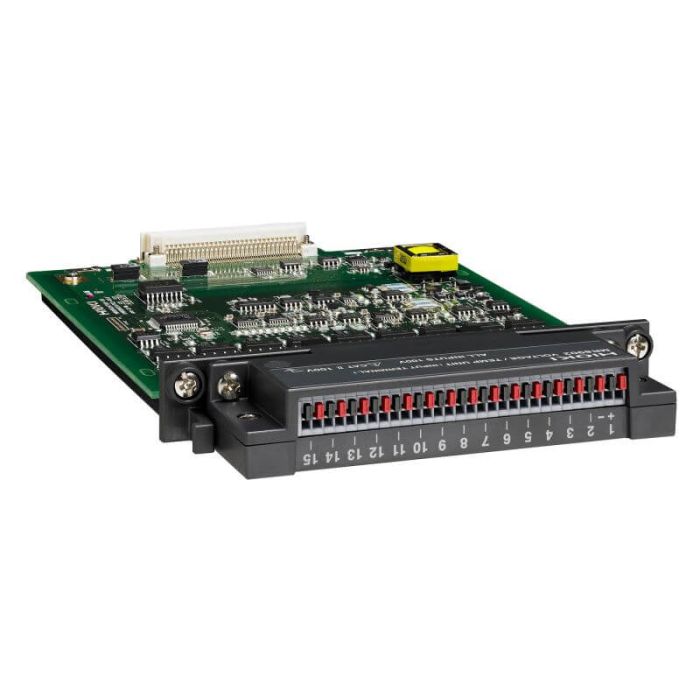

The Hioki MR8902 is a 15-channel analogue input module that supports both voltage and temperature measurements. It's designed for use with Memory recorder, offering flexibility for mixed-signal data capture across different types of sensors.

With high-resolution measurements and customizable filtering, it’s ideal for applications requiring precise, multi-channel monitoring. This module offers robust performance for both voltage and temperature measurements in demanding applications.
